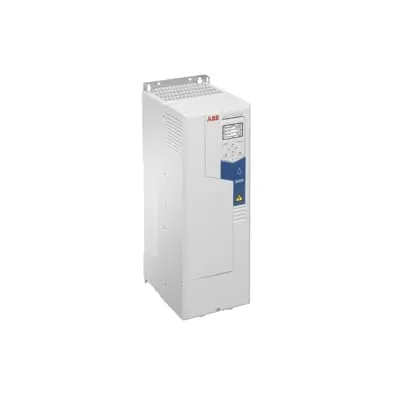

ABB 3AXD50000034599 ACQ580-01 Drive - IP21 Wall-Mounted
Part Number: 3AXD50000034599
Quick Summary
LV AC wall-mounted drive for water and wastewater pumping optimizes flow control and energy efficiency in municipal and industrial systems. Operators struggle with energy waste, pump wear, and downtime from irregular starts and dry runs. The unit ships with IP21 protection as standard, with IP55 and flange-mount options to extend installation choices in harsher environments. With pump-focused features, an intuitive Hand-Off-Auto panel, and Drive Composer compatibility, it delivers measurable business value through reduced operating costs and easier maintenance, while supporting scalable, data-driven pumping solutions for modern water networks.
Product Information
Extended Description
3AXD50000034599 ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean.
Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.
Feature: Sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and impeller cleaning. Benefit: Precise, responsive pump control reduces energy use, extends equipment life, and minimizes unplanned downtime in critical pumping stations. Application: Municipal water and industrial wastewater systems rely on robust sensorless control to maintain steady flow and protect pump integrity.Feature: Built-in energy calculator and intuitive user interfaces (Hand-Off-Auto panel, Drive Composer, optional Bluetooth panel). Benefit: Demonstrates energy savings, accelerates commissioning, and enables remote tuning for ongoing efficiency improvements. Application: Commissioning teams and maintenance crews gain faster time-to-value in new installs and upgrades.Feature: Wall-mounted, compact enclosure with IP21 standard and IP55 option; flange mounting units available. Benefit: Flexible installation in tight plant rooms and harsh environments, reducing space needs and retrofit risk. Application: Retrofit projects and new builds in water treatment facilities and pumping stations.Feature: 30 kW, 62 A, 400 V rating with protective features. Benefit: High-performance drive capability supports large pumps while protecting against dry runs and water hammer through soft-start and ramp controls. Application: Large-volume water transfer and wastewater pumping scenarios.Feature: Compatibility with ABB ecosystem and data tools. Benefit: Simplified integration with existing motor and drive fleets, plus data-driven maintenance planning and ROI analysis. Application: Utilities and industrial sites seeking standardized control architectures and lifecycle cost reductions.
Get a Quick Quote for a ABB 3AXD50000034599
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000034599?
Enquire Now
FAQs
The drive is designed for wall mounting with a standard IP21 enclosure, simplifying installation in compact pump rooms. For harsher environments, IP55-rated options and flange-mount configurations are available, enabling secure installation in cabinets or on wall surfaces. This flexibility reduces retrofit complexity and supports quick deployment in both new builds and upgrade projects.
It delivers 30 kW and 62 A from a 400 V AC supply, designed for water and wastewater pumps. It includes sensorless flow calculation, multipump control, level control, dry run protection, soft pipe fill, quick ramps, and impeller cleaning. These features enable precise flow management, reduced energy consumption, and longer pump life in critical pumping stations.
Yes. Its compact wall-mounted form fits tight pump rooms and its pump-centric controls support reliable operation in municipal water and wastewater facilities. The device integrates with Hand-Off-Auto controls and Drive Composer for easy commissioning and ongoing tuning, delivering reliable performance and lower lifecycle costs.
The ACQ580-01 comes with IP21 protection as standard, with IP55 and flange-mount options for harsher environments. These ratings help protect electronics in typical plant rooms and minimize ingress-related issues, aligning with common industrial electrical standards and ABB's rugged design philosophy.
The drive includes a built-in energy calculator that visualizes potential electricity savings from optimized pump operation, enabling you to quantify kWh reductions and payback periods. When combined with sensorless control and soft-start features, it supports data-driven decisions and faster ROI in water and wastewater projects.
