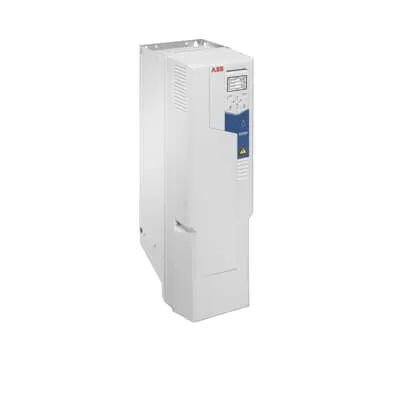

ABB 3AXD50000034601 LV AC wall-mounted drive - IP21
Part Number: 3AXD50000034601
Quick Summary
ABB 3AXD50000034601 LV AC wall-mounted drive delivers precise pump speed control for water and wastewater applications. Engineers often grapple with energy waste and pump wear in aging infrastructure, where even small flow variations drive large energy penalties. This drive mitigates those issues with sensorless flow calculation, soft ramping, and dry-run protection, delivering reliable operation across variable duty cycles. It ships with an IP21 enclosure as standard, with IP55 and flange mounting options available for tougher environments. When paired with the Drive Composer PC tool and optional Bluetooth panel, it enables rapid commissioning and ongoing optimization, while an integral energy calculator highlights potential savings. Together, these features support measurable efficiency gains and a lower total cost of ownership for water utilities and industrial pump stations.
Product Information
Extended Description
3AXD50000034601 ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean.
Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.
Sensorless flow calculation enables precise control of pump speed without external flow meters, reducing instrumentation costs and simplifying installation. The business impact is immediate energy and maintenance efficiency, especially in variable head conditions common to water networks. Applications include municipal pumping stations and wastewater lift stations where accurate flow tracking drives stable process performance. Multi-pump control and level control allow coordinated operation across several pumps, cutting unnecessary cycling and extending equipment life. By optimizing pump sequencing based on real-time demand, utilities can minimize peak electrical loads and reduce energy bills, benefiting both municipal networks and industrial pumping stations. Dry-run protection protects pumps from operating dry, lowering seal wear and maintenance costs, while soft ramping and quick ramps minimize water hammer and mechanical stress during start-up. Combined with a built-in energy calculator, these features enable data-driven decisions and faster ROI for upgrade projects. The Hand-Off-Auto control panel and Drive Composer PC tool streamline commissioning, troubleshooting, and remote monitoring, delivering a practical path to compliant and reliable operation in demanding environments.
Get a Quick Quote for a ABB 3AXD50000034601
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000034601?
Enquire Now
FAQs
The 3AXD50000034601 is a 45 kW LV AC wall-mounted drive designed for 400 V systems and 88 A service. It supports sensorless flow calculation, dry-run protection, and multi-pump sequencing, all within an IP21 enclosure (with IP55 options). It integrates with Hand-Off-Auto panels and the Drive Composer PC tool for straightforward retrofits and scalable upgrades in existing pump stations.
Key specs include 45 kW nominal power, 88 A current, 400 V supply, and an IP21 enclosure as standard (IP55 optional). Features such as sensorless flow calculation, dry-run protection, multi-pump control, level control, soft start/soft ramp, and quick ramps support reliable, energy-efficient operation across variable head and flow conditions typical of water and wastewater systems.
Yes. The drive is specifically designed for water and wastewater applications, offering features that improve reliability and energy efficiency. Its multi-pump control, level sensing, and protective functions align with municipal station needs, while the built-in energy calculator and commissioning tools simplify lifecycle management and justify retrofit investments.
The unit ships with an IP21 enclosure by default, with IP55 and flange mounting variants available for harsher environments. It is intended for LV AC pump systems operating at 400 V, and is compatible with ABB’s pump Drive family. While specific certifications beyond enclosure ratings are not listed here, the design targets robust performance in water and wastewater settings.
ROI is driven by energy savings from precise sensorless control, reduced pump wear through soft ramps and dry-run protection, and lower maintenance needs due to improved protection features. The built-in energy calculator and Drive Composer PC tool support data-driven upgrades, while the optional Bluetooth panel enables remote diagnostics and proactive maintenance planning.
