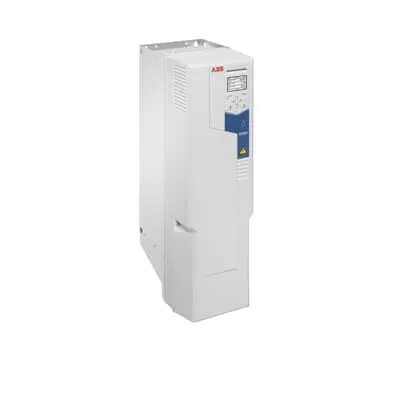

ABB 3AXD50000034602 LV AC wall-mounted drive - IP21/IP55
Part Number: 3AXD50000034602
Quick Summary
ABB 3AXD50000034602 LV AC wall-mounted drive for water and wastewater pumping delivers precise pump control and energy efficiency. Many facilities struggle with variable flow, energy waste, and limited room for adding new drives. The drive carries CE marking with robust IP ratings, offering IP21 standard enclosure and IP55 options for harsher environments, plus flange mounting variants to fit compact spaces. Its built‑in energy calculator, sensorless flow calculation, and multipump level control enable smarter pumping strategies while reducing operating costs. The Hand‑Off‑Auto control panel, Drive Composer PC tool, and optional Bluetooth control panel simplify start‑up and tuning. Overall, this solution improves reliability, reduces maintenance, and supports compliant, sustainable water and wastewater operations.
Product Information
Extended Description
3AXD50000034602 ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean.
Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.
Feature: Sensorless flow calculation, multipump control, and level control. Business Impact: Optimizes pump speed to real demand, reduces energy consumption and mechanical wear. Application: Municipal water and wastewater pumping where flow varies daily. | Feature: Built-in energy calculator and soft ramp/fast ramp control. Business Impact: Quantifies energy savings and minimizes electrical inrush, improving grid compatibility. Application: Variable‑speed pumping in treatment plants and distribution networks. | Feature: Hand‑Off‑Auto interface, Drive Composer PC tool, and Bluetooth option. Business Impact: Accelerates commissioning, improves remote diagnostics, and simplifies field tuning. Application: New installations and retrofit projects across water utilities and industrial plants. | Feature: IP21 standard enclosure with IP55 option and wall‑mount or flange mounting variants. Business Impact: Space saving and robust protection for indoor/outdoor installations in restricted plant rooms. Application: Urban water facilities and wastewater plants requiring compact, compliant drives. | Feature: Dry run protection, quick ramps, and pump impeller cleaning support. Business Impact: Prevents pump damage, reduces downtime, and extends equipment life. Application: Critical pumping stations in municipal and industrial contexts.
Get a Quick Quote for a ABB 3AXD50000034602
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000034602?
Enquire Now
FAQs
For new installs, ensure adequate wall space for a compact wall-mounted drive and plan wiring for 400 V mains. Verify enclosure choice (IP21 standard or IP55 option) and confirm flange mounting compatibility if required. Use the Hand‑Off‑Auto panel and Drive Composer for commissioning, and consider Bluetooth control for field updates.
The unit covers a 55 kW power rating with 106 A current at 400 V. It comes in an IP21 enclosure by default, with an IP55 option available. Features include sensorless flow calculation, multipump control, level control, dry run protection, soft pipe fill, and an energy calculator to quantify savings.
Yes. It is specifically designed for water and wastewater pumping, offering built‑in pump application features such as sensorless flow calculation, multipump control, level control, and energy optimization. The wall-mount design saves space in plant rooms and supports reliable, compliant operation in municipal and industrial environments.
The drive carries CE marking for safety and compliance. It includes IP21 enclosure as standard with an IP55 option for harsher environments, and supports wall‑mounted installation with flange mounting variants to meet installation site requirements.
Expect measurable energy savings from optimized pump speed and flow control, reduced downtime due to dry run protection and gentle ramping, and easier maintenance through intuitive interfaces like Hand‑Off‑Auto and Drive Composer. Remote diagnostics via Bluetooth can shorten service windows and lower lifecycle costs.
