ABB 3AXD50000034604 Motors & Drives - IP21 Pump Drive
Part Number: 3AXD50000034604
Quick Summary

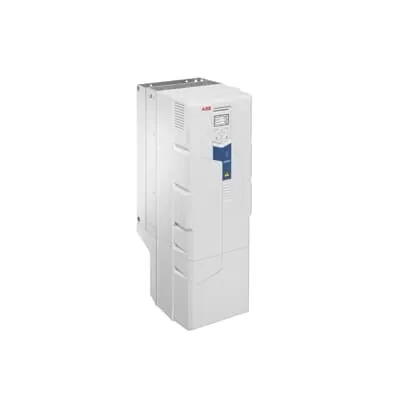

ABB 3AXD50000034604 is a LV AC wall-mounted drive for water and wastewater pumping applications. Operators often struggle with energy waste, dry-run incidents, and coordinating multiple pumps in fluctuating water networks. The drive ships with an IP21 enclosure by default, with IP55 and flange-mount options for harsher environments. It includes pump-focused features such as sensorless flow calculation, multipump control, level control, soft pipe fill, and dry-run protection, plus an intuitive Hand-Off-Auto panel and Drive Composer PC tool. The built-in energy calculator visualizes savings, helping utilities justify capital investments while lowering life-cycle costs and improving process reliability. Secondary advantages include straightforward commissioning and seamless integration with existing control architectures.
Product Information
Extended Description
3AXD50000034604 ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean.
Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.
Feature: Sensorless flow calculation enables accurate pump performance without external sensors. Impact: reduces instrumentation costs and improves control precision, leading to energy savings and longer impeller life. Application: municipal water treatment and wastewater transfer applications benefit from tighter head and flow control. Feature: Multipump control and level management coordinate multiple pumps, improving system balance and preventing overpumping. Application: lift stations and distribution networks. Feature: Dry run protection and quick ramps minimize pump wear and downtime, protecting equipment and stabilizing flow. Application: variable demand scenarios in pumping stations. Feature: Soft pipe fill and automatic clean-in-place-friendly routines reduce surge stress and maintenance needs. Application: new installs and retrofits in aging plants. Feature: Hand-Off-Auto control, Drive Composer PC tool, and optional Bluetooth panel streamline setup, monitoring, and remote diagnostics. Application: field service efficiency and faster commissioning. Feature: Built-in energy calculator visualizes savings, supporting ROI analyses and energy-management strategies. Application: utility-grade optimization and better capital planning.
Get a Quick Quote for a ABB 3AXD50000034604
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000034604?
Enquire Now
FAQs
For installation in wastewater facilities, mount the drive on a stable wall surface with access to 400 V three-phase power and a suitable control cabinet. Use the standard IP21 enclosure and consider IP55 or flange-mount options for harsher environments. Ensure adequate ventilation, proper EMC grounding, and integration with the plant control system via the Drive Composer tool.
Sensorless flow calculation estimates flow rates from motor and drive signals, reducing the need for external flow meters. This improves control accuracy, lowers capital and maintenance costs, and helps maintain desired head at varying loads. In water and wastewater pumping, this translates to steadier pressure, reduced energy usage, and better compliance with process requirements.
Yes. The ACQ580-01 family within this model supports multipump control, enabling coordinated operation of several pumps to match demand while minimizing cycling and wear. In wastewater networks, this reduces energy peaks, improves reliability, and simplifies sequencing strategies, especially during variable flow conditions and transient events.
The standard configuration is IP21, which suits indoor or protected environments. Optional IP55 enclosure and flange-mount configurations extend ruggedness for outdoor or damp locations. When planning, assess exposure to dust, moisture, and temperature, and select the enclosure accordingly to maintain reliability and ensure service access for maintenance.
Expected ROI comes from energy savings, reduced pump downtime, and longer motor life thanks to precise flow control and dry-run protection. Maintenance benefits include easier commissioning via Drive Composer, fewer external sensors, and centralized monitoring. Utilities can quantify savings with the built-in energy calculator and plan predictive maintenance around pump performance data.
