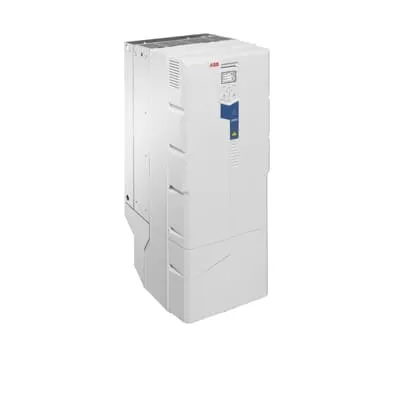

ABB 3AXD50000034608 Motors & Drives - ACQ580-01-363A-4
Part Number: 3AXD50000034608
Quick Summary
ABB 3AXD50000034608 is a LV AC wall-mounted drive for water and wastewater applications. The drive helps operators improve energy efficiency while delivering reliable pumping performance in municipal and industrial settings. This solution is CE-compliant and features an IP21 enclosure by default, with IP55 and flange-mount variants available for harsher environments. Pumping challenges such as variable demand, equipment wear, and dry-run events are addressed through sensorless flow calculation, level control, and dry-run protection. By leveraging the built-in energy calculator and the Hand-Off-Auto control panel, plus the Drive Composer PC tool and optional Bluetooth controller, maintenance teams can optimize operation, reduce lifecycle costs, and scale automation for growing water management needs. It supports municipal pumping, wastewater treatment, and industrial process water systems as part of a broader automation strategy.
Product Information
Extended Description
3AXD50000034608 ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean.
Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.
Feature: Built-in pump application features including sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and pump impeller cleaning. Business Impact: Optimizes pump performance, reduces energy consumption, and minimizes unexpected shutdowns. Application: Municipal water supply and wastewater pumping stations, industrial process water systems. Feature: Intuitive Hand-Off-Auto control panel, Drive Composer PC tool, and optional Bluetooth control panel. Business Impact: Accelerates commissioning, simplifies troubleshooting, and enables remote monitoring for maintenance teams. Application: Field deployments across treatment plants and remote facilities. Feature: Built-in energy calculator visualizing potential savings. Business Impact: Enables data-driven energy management, lowers operating costs, and supports sustainability targets. Application: Seasonal demand adjustments and peak-shaving strategies in municipal networks. Feature: IP21 standard enclosure with IP55 option and flexible mounting. Business Impact: Eases installation in indoor facilities and harsher environments, reduces lifecycle costs. Application: Wall-mounted installations in tight plant spaces and retrofit projects. Feature: Sensorless control, dry-run protection, and quick ramping for gentle startup. Business Impact: Extends pump life, reduces maintenance, and minimizes water hammer. Application: Pumps handling varying loads and critical processes in water/wastewater systems.
Get a Quick Quote for a ABB 3AXD50000034608
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000034608?
Enquire Now
FAQs
ABB 3AXD50000034608 is designed for wall mounting with an IP21 enclosure standard, and IP55 variants are available for harsher environments. Ensure proper wiring, cooling, and accessibility for the Hand-Off-Auto panel. Plan for integration with Drive Composer and optional Bluetooth control, and verify compatibility with existing pumps and sensors to maximize sensorless flow features.
Key specifications include a nominal power rating of 200 kW, a current rating of 363 A, and a operating voltage of 400 V. The model variant ACQ580-01-363A-4 is intended for LV applications in water/wastewater pumping. Verify enclosure choice (IP21 standard or IP55 option) and ensure compatible motor sizing and pump curves for your system.
Yes. The ACQ580 family is tailored for water and wastewater pumping, featuring sensorless flow calculation, level control, and dry-run protection to safeguard pumps. It supports multi-pump control and soft-start features to manage surge and water hammer, delivering energy-efficient, reliable operation across municipal treatment plants and distribution networks.
Key certifications include CE marking for EU compliance and IP ratings for environmental protection, with IP21 as standard and IP55 as an optional enhancement. These features help ensure safe operation in typical water/wastewater environments and align with common regulatory requirements for industrial drives.
The drive reduces energy consumption through advanced pump control and energy calculation tools, while dry-run protection extends component life and lowers maintenance costs. Faster commissioning via Hand-Off-Auto and Drive Composer decreases downtime, and sensorless control minimizes sensor costs. Overall, projects tend to see lower lifecycle costs and improved process reliability.
