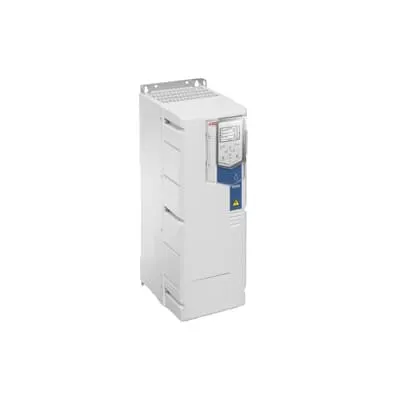

ABB 3AXD50000034622 LV AC wall-mounted drive - IP21/IP55
Part Number: 3AXD50000034622
Quick Summary
ABB 3AXD50000034622 is a LV AC wall-mounted drive designed for water and wastewater pumping. This solution addresses common pain points such as energy waste, pump wear, and inconsistent flow by delivering precise control and robust protection features. It ships with IP21 protection by default, with IP55 and flange-mount variants available for harsher environments and tougher installations, aligning with industry IP rating expectations. Integrated tools like the energy calculator, Hand-Off-Auto control panel, and Drive Composer support measurable savings and faster commissioning for engineering teams.
Product Information
Extended Description
3AXD50000034622 ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean.
Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.
Feature: Pump-specific application functionality including sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, and dedicated pump-cleaning logic. Business Impact: Improves flow accuracy, reduces pump wear, and lowers total cost of ownership by preventing dry running and enabling smoother transitions between pumps. Application: Ideal for water and wastewater pumping stations seeking reliable, energy-efficient operations. Feature: Built-in energy calculator visualizes potential savings from optimized pump duty, enabling data-driven decisions and justifying capital spend. Business Impact: Quantifies energy reduction and accelerates ROI calculations. Application: Plant-wide pump optimization projects. Feature: Hand-Off-Auto control panel, Drive Composer PC tool, and optional Bluetooth control panel streamline setup, commissioning, and diagnostics. Business Impact: Reduces commissioning time, minimizes commissioning errors, and enhances remote troubleshooting. Application: Field deployment in remote locations and staffed automation rooms. Feature: Quick ramping and protective features including dry run protection and slip-free start sequences. Business Impact: Extends motor life, lowers maintenance cost, and improves plant reliability. Application: Critical pumping loops where uptime matters. Feature: Flexible enclosure options with IP21 standard and IP55 option facilitate on-wall installation in varied environments. Business Impact: Simplifies installation planning, reduces enclosure-related costs, and supports space-constrained layouts. Application: Water treatment facilities and municipal pumping stations needing adaptable mounting and protection.
Get a Quick Quote for a ABB 3AXD50000034622
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000034622?
Enquire Now
FAQs
This drive is designed for on-wall mounting in LV AC systems and supports up to 30 kW at 400 V with a 62 A input. Use the Hand-Off-Auto panel for basic operation, Drive Composer for configuration, and ensure IP21 enclosure (IP55 option available) aligns with your plant environment. Verify motor polarity, cable sizing, and protective device coordination, then commission using the PC tool to validate sensorless control and soft-start ramps.
Key features include sensorless flow calculation, multipump control, level management, soft pipe fill, dry run protection, quick ramps, and a pump impeller cleaning solution. These enable precise pump matching to process demand, prevent dry running, and reduce wear. In water and wastewater applications, this translates to stable head and flow, lower energy use, and extended pump life.
Yes. The drive is tailored for water and wastewater pumping with pump-specific functions, energy-saving capabilities, and protection features that mitigate common municipal challenges such as variable flow, cavitation risk, and dry running. Its compact wall-mount form and available IP55 option support installation in treatment plants and pump stations with space or environment constraints.
The product comes with IP21 protection by default and offers IP55 variants for harsher environments. These IP ratings address protection against ingress and dust in typical water and wastewater facilities, while enabling reliable operation in damp or dusty plant rooms when configured with IP55 enclosures.
By incorporating an energy calculator, energy efficiency improves pumping performance and reduces electricity bills. Dry run protection and quick ramps minimize maintenance costs and extend motor life, while multipump control reduces equipment wear during load fluctuations. Drive Composer and the Hand-Off-Auto panel reduce commissioning time and downtime, delivering faster project ROI.
