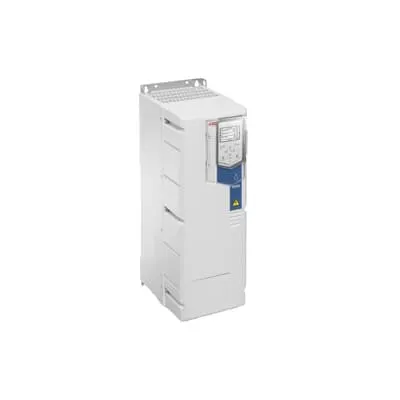

ABB 3AXD50000034623 Wall-Mounted Drive - IP21
Part Number: 3AXD50000034623
Quick Summary
ABB 3AXD50000034623 wall-mounted drive controls pumps in water and wastewater systems, delivering precise speed control for reliable pumping. Operators often grapple with energy waste, premature pump wear, and complex integration when upgrading legacy stations. This drive features IP21 standard enclosure, with IP55 and flange-mount options to suit harsh environments and space constraints. By delivering sensorless flow calculation, multipump control, and level protection, it reduces energy consumption and downtime. Built-in energy calculation, the Hand-Off-Auto panel, and optional Bluetooth control panel simplify commissioning, while Drive Composer compatibility accelerates integration with existing SCADA and maintenance workflows.
Product Information
Extended Description
3AXD50000034623 ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean.
Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.
Feature: Sensorless flow calculation → Business Impact: Enables precise pump speed control without external sensors, reducing energy use and wear; Application: Water and wastewater pumping stations. Feature: Multipump control and level management → Business Impact: Optimizes pump sequencing to minimize cycling, extend equipment life, and lower operating costs; Application: Multi-pump pumping stations. Feature: Dry run protection and soft pipe fill → Business Impact: Protects pumps from damage during startup and reduces water hammer, lowering maintenance costs; Application: Clean-water and wastewater transfer. Feature: Built-in energy calculator and quick ramps → Business Impact: Quantifies savings and speeds commissioning, accelerating ROI; Application: New installations and retrofits. Feature: Hand-Off-Auto control, Drive Composer, and optional Bluetooth panel → Business Impact: Simplifies commissioning, diagnostics, and remote monitoring; Application: Field deployment and remote service. Feature: IP21 standard enclosure with IP55 option → Business Impact: Flexible mounting for wall installations and harsher environments, enabling compact layouts; Application: Plant rooms and outdoor-adjacent installations. These capabilities collectively support compliance with industry best practices for water infrastructure while delivering measurable efficiency gains and predictable maintenance cycles.
Get a Quick Quote for a ABB 3AXD50000034623
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000034623?
Enquire Now
FAQs
Yes. The drive is designed for 400 V AC motors up to 37 kW and is intended for wall mounting with an IP21 enclosure standard. IP55 and flange-mount options are available to suit different installation environments. It supports Hand-Off-Auto operation and integrates with Drive Composer for straightforward commissioning with existing systems.
Key features include sensorless flow calculation for precise pump control without extra sensors, an integrated energy calculator to visualize savings, and soft ramping to reduce electrical and mechanical stress. Multipump control further optimizes sequencing, which lowers overall energy consumption and extends component life in variable-demand scenarios.
Absolutely. The ACQ580-01 family supports multipump control and level management, enabling coordinated operation of several pumps. This reduces cycling, minimizes short cycling wear, improves reliability in lift stations, and helps maintain steady throughput during fluctuating demand typical of wastewater facilities.
The drive comes with an IP21 enclosure as standard, with IP55 options available for tougher environments. While CE markings are standard for ABB equipment in many regions, the critical spec focus for this model is the enclosure rating and mounting options, which provide the needed regulatory compliance and field applicability for water infrastructure projects.
Deploying the drive typically reduces energy costs through optimized pump operation and minimizes downtime via protective features like dry run protection and level control. The integration with Drive Composer and remote monitoring capabilities accelerates maintenance routines, shortening mean time to repair and delivering a favorable return on investment through lower operating expenses.
