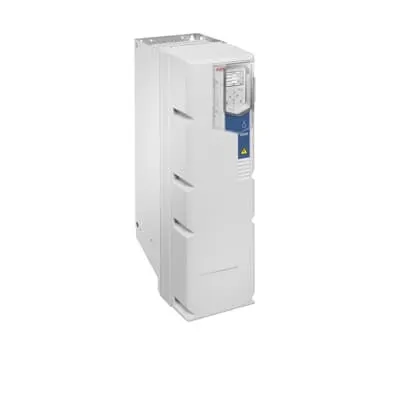

ABB 3AXD50000034624 LV AC Drive - 45 kW, 88 A, 400 V
Part Number: 3AXD50000034624
Quick Summary
ABB 3AXD50000034624 LV AC wall-mounted drive accelerates pump control for water and wastewater applications. Operators often battle wasted energy, inconsistent flow, and lengthy commissioning that cut into uptime. This drive offers IP21-standard enclosure with IP55 options and flexible mounting for demanding environments. It includes sensorless flow calculation, quick ramps, and a built-in energy calculator to visualize savings and support ROI. Combined with Hand-Off-Auto control and Drive Composer, it streamlines deployment and delivers reliable, efficient pumping across utilities and industrial sites.
Product Information
Extended Description
3AXD50000034624 ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean.
Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.
Feature: Built-in pump application capabilities including sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and an impeller cleaning solution. Business Impact: Reduces energy consumption, minimizes pump wear, and lowers maintenance costs by enabling precise, adaptive control in variable-flow conditions. Application: Ideal for water and wastewater pumping, booster stations, and lift stations where reliability and efficiency are critical. Feature: Intuitive operator interface with Hand-Off-Auto control panel, PC-based Drive Composer tool, and optional Bluetooth control panel. Business Impact: Speeds up commissioning, simplifies troubleshooting, and reduces on-site labor for commissioning and resets. Application: Useful during installation, start-up, and field diagnostics in municipal and industrial facilities. Feature: Built-in energy calculator and transparent energy visualization. Business Impact: Quantifies potential energy savings, supports ROI analysis, and helps justify project economics to stakeholders. Application: Utilities and process plants aiming to optimize energy use in pumping systems. Feature: Compact, wall-mounted enclosure with IP21 standard protection and optional IP55 flange mounting. Business Impact: Minimizes installation footprint and enables rugged configurations for indoor or outdoor-adjacent pump rooms. Application: Retrofit projects and new builds in constrained spaces. Feature: Robust protection features including dry run protection and rapid ramping. Business Impact: Extends pump life, reduces unexpected motor stalls, and improves system stability during startup and load changes. Application: Critical in wastewater influent and clean-water pumping where reliability is paramount.
Get a Quick Quote for a ABB 3AXD50000034624
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000034624?
Enquire Now
FAQs
The drive supports a wall-mounted configuration with a standard IP21 enclosure and optional IP55 flange-mounting kits. It is designed for 400 V three-phase power, up to 45 kW and 88 A. For rugged environments or outdoor-adjacent applications, IP55 options provide enhanced protection while preserving compact footprint and quick deployment.
Sensorless flow calculation estimates actual flow by analyzing motor electrical signals rather than relying on external sensors. This enables precise speed control, reduces instrumentation needs, lowers installation and maintenance costs, minimizes cavitation during startup, and improves overall pump efficiency in varying load conditions.
Yes. The ABB LV AC wall-mounted drive is compatible with Drive Composer, a PC-based tool that streamlines configuration, commissioning, and diagnostics. It supports Hand-Off-Auto operation and integrates with ABB automation workflows, enabling faster setup, remote troubleshooting, and orderly maintenance planning.
The built-in energy calculator estimates potential kWh savings from optimized VFD control, soft-start ramping, and sensorless pump management. By visualizing savings, engineers can justify the investment, quantify payback periods, and drive ongoing energy-efficiency improvements across water and wastewater pumping assets.
Key features include dry run protection, quick ramping to minimize mechanical stress, level control for tank/pipeline applications, and robust IP-rated protection. Together with a compact wall-mounted design, these capabilities reduce maintenance needs, improve system safety, and support reliable operation in challenging water utility environments.
