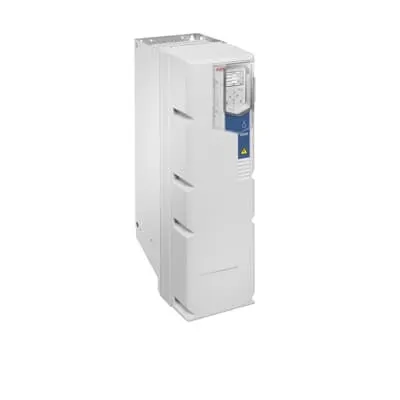

ABB 3AXD50000034625 LV AC Wall-Mounted Drive - IP21 Enclosure
Part Number: 3AXD50000034625
Quick Summary
ABB 3AXD50000034625 LV AC wall-mounted drive delivers efficient pump control for water and wastewater applications. Operators often face energy waste and unexpected downtime when pumps operate against variable head or risk dry running. This drive features an IP21 enclosure by default with IP55 and flange mounting options, plus sensorless flow calculation for reliable control. It pairs a user-friendly Hand-Off-Auto control panel, Drive Composer, and an optional Bluetooth control panel with an integrated energy calculator, helping you quantify savings and optimize operation. The result is a compact, scalable solution that reduces maintenance complexity while supporting compliant, energy-efficient pumping strategies across your network.
Product Information
Extended Description
3AXD50000034625 ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean.
Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.
Feature: Sensorless flow calculation — Benefit: Improves pump efficiency and reduces instrumentation cost by removing the need for external flow sensors, enabling accurate flow estimation in water and wastewater systems. Application: Municipal pumping stations and treatment plants seeking reliable, cost-effective flow management. Feature: Multipump control and level control — Benefit: Stabilizes system pressure and level dynamics, reducing cavitation risk and mechanical wear. Application: Multistage or multipump configurations in wastewater lift stations and industrial process lines. Feature: Dry run protection — Benefit: Prevents pump damage and unplanned downtime by detecting dry running conditions early. Application: New installations and retrofit projects where suction conditions may vary. Feature: Soft pipe fill and quick ramps — Benefit: Minimizes water hammer and electrical surge during start-up, extending motor life and pipeline integrity. Application: Sudden-load connections in municipal networks and process lines. Feature: Built-in energy calculator — Benefit: Visualizes energy savings in real time, supporting ROI tracking and ongoing optimization. Application: Facilities pursuing energy efficiency targets and utility benchmarking. Feature: Hand-Off-Auto, Drive Composer, and Bluetooth control panel (optional) — Benefit: Streamlines commissioning, remote diagnostics, and site-wide management for faster deployment. Application: Field installations across multiple sites with centralized control expectations. Feature: Compatibility and installation — Benefit: 400 V, 106 A, 55 kW rating fits standard LV drives, while IP21 enclosure (with IP55 option) simplifies mounting on walls or within compact spaces. Application: New builds and retrofits in water and wastewater infrastructure and industrial plants.
Get a Quick Quote for a ABB 3AXD50000034625
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000034625?
Enquire Now
FAQs
The ABB ACQ580-01 is designed for straightforward integration with LV motors up to 55 kW at 400 V. Start by confirming your pump motor’s nameplate current (106 A) and ensure the enclosure is IP21 (or IP55 option) suitable for your installation. Use the Hand-Off-Auto panel for commissioning, connect to the Drive Composer for tuning, and enable sensorless flow or pump-application features to optimize flow control. Verify wiring integrity, motor protection settings, and purge/vent lines to prevent cavitation and dry running.
The drive supports up to 55 kW (Pn 55 kW) with a current rating of 106 A at 400 V. It includes sensorless flow calculation, multipump and level control, dry run protection, soft pipe fill, and quick ramps. These features translate to smoother starts, energy-efficient operation, and robust protection for water and wastewater pumping applications, reducing wear and energy waste while maintaining process stability.
Yes. The ACQ580-01 variant is specifically designed for water and wastewater applications. Its multiplex pump control, level management, dry-run protection, and energy-saving features make it ideal for lift stations, treatment plants, and municipal infrastructure where reliability, efficiency, and compact installation are priorities.
This drive is delivered with an IP21 enclosure as standard and offers IP55 mounting options for harsher environments. It is designed to meet common electrical equipment standards for LV drives, with ABB typically aligning products to CE norms in practice; verify local compliance requirements for your project and site-specific certification needs before deployment.
The integrated energy calculator and sensorless flow features enable ongoing energy optimization, supporting measurable reductions in energy costs. Dry-run protection and soft-start capabilities reduce mechanical wear and downtime, lowering maintenance frequency. Remote management via Drive Composer and optional Bluetooth panel accelerates troubleshooting and improves asset utilization across multiple sites.
