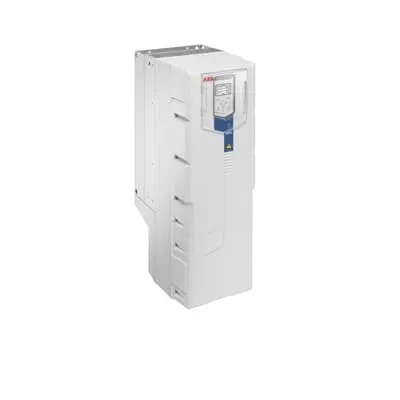

ABB 3AXD50000034628 LV AC drive - IP55 enclosure
Part Number: 3AXD50000034628
Quick Summary
ABB 3AXD50000034628 LV AC drive is a wall-mounted controller for water and wastewater pumping applications. It helps engineers tackle energy waste, pump wear, and complex startup sequences by delivering pump-specific control in one robust unit. The drive carries CE marking for safety and EMC, uses an IP21 enclosure by default, and offers IP55 and flange-mount options for harsher environments. Together with built-in energy calculation, intuitive set-up tools, and optional Bluetooth control, this drive supports faster commissioning and ongoing operational savings. This translates to a more reliable pumping system with reduced maintenance overhead for utilities and industrial water users.
Product Information
Extended Description
3AXD50000034628 ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean.
Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.
Built-in pump application functionality such as sensorless flow calculation, multipump control, and level control enables adaptive operation directly from the drive. This reduces reliance on external controllers, lowers installation complexity, and improves the accuracy of pumping curves, cutting energy use and wear. The result is tighter process control in water intake, distribution networks, and wastewater lift stations. This feature set is especially valuable where multiple pumps must coordinate to maintain pressure and avoid surges, helping operators meet performance targets while extending equipment life. Soft pipe fill, dry run protection, and quick ramps address mechanical stress and water hammer during start-up. The drive’s soft-start behavior reduces torque and pressure transients, protecting impellers and piping. Dry run protection prevents pump damage in dry conditions, while rapid ramping supports rapid response to demand changes without compromising system integrity. Together, these functions translate into fewer maintenance interventions and longer asset service intervals. An integrated energy calculator visualizes potential savings and supports ongoing optimization across operating modes and duty cycles. When combined with Hand-Off-Auto option, commissioning and on-site adjustments become faster and safer, minimizing human error. Operators gain better visibility into energy use, enabling data-driven decisions that lower operating costs and help meet regulatory energy efficiency targets. Drive Composer PC tool provides configuration, commissioning, and diagnostics in a familiar ABB software environment, while the compact wall-mount form factor simplifies retrofits and new builds. IP21 standard enclosures offer ready indoor protection, with IP55 upgrades and flange mounting options for harsher environments or space-constrained installations. The device is designed to integrate with existing ABB drive ecosystems, reducing training needs and accelerating project delivery. Beyond performance, the ACQ580-01 variant aligns with safety and reliability requirements through CE compliance and robust protection features such as dry run and overcurrent protection. The combination of compact footprint, energy efficiency, and pump-focused features makes it a dependable choice for municipal water utilities and industrial processing plants seeking predictable uptime and lower life-cycle costs.
Get a Quick Quote for a ABB 3AXD50000034628
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000034628?
Enquire Now
FAQs
What mounting surfaces and enclosure options are recommended? The ACQ580-01-206A-4+B056 is designed for wall mounting with IP21 by default and IP55 upgrade paths. Ensure a clean wall, adequate ventilation, and proper clearance per ABB installation guidelines. Use the Drive Composer tool for initial configuration and connect the Hand-Off-Auto panel for local control during commissioning.
Core specs include Pn 110 kW, 206 A, 400 V. Protection features cover dry run protection, soft-start/rapid ramping, and overcurrent protection. This combination reduces motor stress, extends impeller life, and minimizes unscheduled downtime while enabling safe operation in water and wastewater applications.
Yes. Sensorless flow calculation and multipump control enable coordinated operation of multiple pumps, maintaining required head and flow while optimizing energy use. Level control helps prevent dry-run scenarios or overflow, and the energy calculator supports ongoing optimization of duty cycles in multi-pump configurations.
The drive carries CE certification for safety and EMC. It is supplied in an IP21 enclosure, with optional IP55 and flange-mounted variants for harsher environments or space-constrained installations. These certifications and options support compliance with EU requirements and ensure suitability for protected indoor and semi-exposed outdoor pump rooms.
Expect reduced maintenance due to dry run protection and smoother starts, plus energy savings from sensorless control and optimized duty cycles. The integrated energy calculator and intuitive commissioning tools shorten project timelines, lowering total cost of ownership while improving uptime and process reliability in water utilities and industrial facilities.
