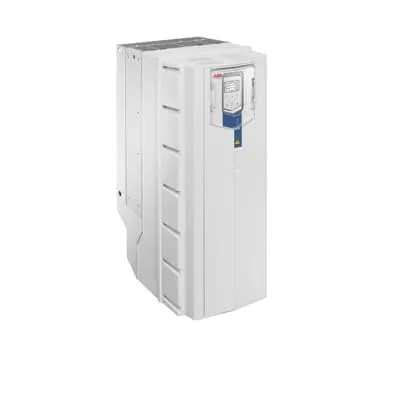

ABB 3AXD50000034631 LV AC Drive - IP21 Enclosure
Part Number: 3AXD50000034631
Quick Summary
ABB 3AXD50000034631 LV AC Drive delivers precise motor control for water and wastewater pumping applications. Operators face energy waste and unplanned downtime in municipal and industrial pumping, especially under variable flow. CE marking and IP21 enclosure with options for IP55 ensure compliant, durable performance in challenging environments. Beyond basic control, it provides energy monitoring, integrated pump features, and intuitive tools that translate into real business value. Designed for wall mounting, it supports hands-on, auto, and remote configuration via Drive Composer and optional Bluetooth panels, helping technicians reduce setup time. The result is improved energy efficiency, predictable pump performance, and lower total cost of ownership across water and wastewater systems.
Product Information
Extended Description
3AXD50000034631 ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean.
Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.
Feature → Business Impact → Application: Sensorless flow calculation enables accurate flow control without adding external sensors, reducing equipment costs and maintenance cycles while improving process stability in municipal water networks. In practice, this means tighter pump regulation, lower energy usage, and fewer cavitation incidents in pumping stations that handle fluctuating demand. Feature → Business Impact → Application: Multipump control allows parallel or staged operation of pumps to match demand precisely, minimizing wear and energy draw in sewage treatment facilities and irrigation networks alike. Feature → Business Impact → Application: Level control and soft pipe fill help prevent surges and water hammer, extending pipe life and enabling smoother startup in large treatment plants and water distribution systems. Feature → Business Impact → Application: Dry run protection guards against pump dry-out conditions, protecting impellers and reducing unscheduled maintenance in low-flow scenarios common to wastewater networks. Feature → Business Impact → Application: Quick ramps, intuitive Hand-Off-Auto control, and Drive Composer streamline commissioning and ongoing adjustments, cutting project timelines and operational downtime. Feature → Business Impact → Application: Built-in energy calculator visualizes savings opportunities, supporting ongoing optimization and justifying upgrades to stakeholders. Feature → Business Impact → Application: IP21 standard enclosure with wall-mounting simplifies installation in controlled indoor spaces; IP55 and flange options expand use into harsher environments and alternative mounting scenarios. These capabilities collectively improve compliance, reliability, and total cost of ownership for water/wastewater pumping, municipal infrastructure, and industrial process lines.
Get a Quick Quote for a ABB 3AXD50000034631
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000034631?
Enquire Now
FAQs
Begin with a clean, solid wall surface and confirm clearance for wiring. Mount the unit using the standard wall-mount provisions (with IP21 enclosure as default). Connect power and motor cables per the manual, then configure via Hand-Off-Auto or Drive Composer. Consider IP55 or flange mounting options if the site requires higher ingress protection or alternative orientations.
Key specs include Pn of 200 kW, current 363 A, and nominal voltage 400 V. The drive supports sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, and quick ramps. It is designed for water and wastewater pumping with an IP21 enclosure standard and optional IP55 or flange mounting units.
Yes, the ABB drive is CE compliant for European installations. The standard enclosure is IP21 suitable for indoor wall mounting, with IP55 and flange-mount options available for harsher or outdoor-inspired environments, expanding installation flexibility while maintaining protection standards.
Yes. The ACQ580-01 family supports multipump control, enabling coordinated operation of several pumps to match demand and improve reliability. Dry-run protection protects impellers during low-flow or no-flow conditions, reducing pump damage and maintenance costs in wastewater applications.
Ownership improves through energy savings visible via the built-in energy calculator, reduced wear from controlled acceleration and lubrication needs, and fewer unplanned outages due to dry-run protection and reliable level control. The integrated features simplify commissioning and ongoing operations, shortening downtime and lowering life-cycle costs in municipal and industrial pumping systems.
