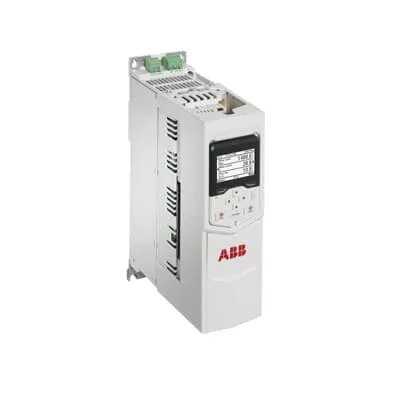

ABB 3AXD50000036386 LV AC Machinery Drive Module - UL 1 Hp
Part Number: 3AXD50000036386
Quick Summary
ABB 3AXD50000036386 is an LV AC machinery drive module for precise motor speed control in industrial equipment. Engineers often struggle to source compact drives that deliver reliable performance at 230 V while meeting UL and safety requirements. Key certifications include UL listing for Pld 1 Hp at 230 V, and design alignment for CE marking readiness and IEC safety standards. This module reduces panel space and simplifies wiring, accelerating commissioning and lowering installation costs. With ABB's reliability and compatibility with the ACS880-M04-04A8-2 family, it supports scalable automation architectures and faster time to value.
Product Information
Feature → The module delivers a compact low-voltage drive solution with nominal power of 0.75 kW and current ratings that align with 230 V mains. Business Impact → Engineers gain predictable motor performance and smoother control without oversized enclosures, enabling smaller, cost-efficient panels. Application → Ideal for small conveyors, packaging lines, and machine tools where space and efficiency matter. Feature → UL listed safety for Pld 1 Hp output at 230 V. Business Impact → Compliance with safety standards reduces risk during commissioning and operation, lowering inspection time and warranty issues. Application → Fits regulated environments and quality-sensitive manufacturing lines. Feature → Compatibility with the ACS880-M04-04A8-2 family. Business Impact → Faster integration into existing ABB automation ecosystems, minimizing retrofits and training. Application → Seamless upgrades or expansions across machine tools and process lines. Feature → Simple wiring and installation at standard 230 V. Business Impact → Shorter commissioning cycles and lower labor costs. Application → Retrofit projects and new installations in panels with tight space constraints. Feature → Robust reliability for industrial environments. Business Impact → Reduced maintenance, longer mean time between failures, and lower total cost of ownership. Application → Reputable performance in conveyors, pumps, and tooling applications in manufacturing settings.
Get a Quick Quote for a ABB 3AXD50000036386
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000036386?
Enquire Now
FAQs
To install the 3AXD50000036386, mount the module in a suitable control panel, connect 230 V AC power to the input terminals, and wire the output to the driven motor as per the ACS880-M04-04A8-2 compatibility guide. Verify UL labeling, set drive parameters for the motor type, and perform a controlled low-speed test before full operation. Proper shielding, grounding, and cable routing minimize EMI and ensure reliable performance in conveyors, packaging lines, or machine tools.
The module is rated for 0.75 kW nominal power with a 4.8 A input current at 230 V AC. In UL terms, it supports a Pld of 1 Hp with about 4.5 A at 230 V for the motor output. These values enable efficient speed control for small to mid-sized motors and align with common 230 V industrial installations.
Yes. The 3AXD50000036386 is designed for low-voltage, 230 V applications and can drive conveyors and machine tools that require precise speed control and reliable startup. Its compact footprint aids in panel integration, while UL listing supports safe operation in production environments. For conveyors, the module can smooth acceleration/deceleration to reduce wear and belt tension.
The module carries UL listing for Pld 1 Hp at 230 V, indicating strong safety compliance for industrial use. ABB designs typically target CE marking readiness and alignment with IEC-based safety standards, providing confidence in European and global installations. Always verify the specific certification package for your region and project requirements.
ROI comes from energy efficiency through optimized speed control, reduced motor wear, and shorter commissioning times due to straightforward installation and ABB ecosystem compatibility. In practice, expect lower energy consumption on variable-speed drives, fewer spare parts due to extended motor life, and faster time-to-value for automation upgrades or retrofits in manufacturing lines.
