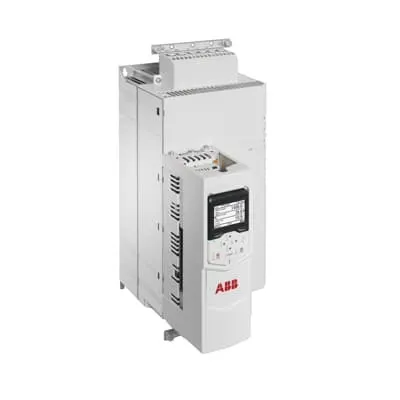

ABB 3AXD50000036399 LV AC drive module - 22 kW
Part Number: 3AXD50000036399
Quick Summary
ABB 3AXD50000036399 LV AC drive module enables precise motor control for plant automation. In modern production lines, inconsistent speed and wasted energy can impact throughput and maintenance costs. This module adheres to IEC specifications for a 22 kW, 94 A load at 230 V and is UL-listed for 30 Hp, 90 A, 230 V, reinforcing safety and reliability. By leveraging ABB's ACS880 heritage, engineers gain predictable performance, easier diagnostics, and a clear retrofit path for existing equipment. The result is reduced downtime, lower energy spend, and a smoother transition to smart manufacturing while maintaining compatibility with common 230 V infrastructure.
Product Information
Feature: Precise speed and torque control via closed-loop vector control improves process stability and reduces motor wear. Business Impact: Enables tighter tolerances, lower energy consumption, and extended motor life across continuous-running lines. Application: Ideal for conveyors, pumps, fans, and machine tools in manufacturing environments. Feature: UL-listed safety and robust protection supports compliance audits and reduces risk in hazardous or high-demand areas. Business Impact: Safer operations and simplified maintenance planning. Application: Applicable to automated packaging, material handling, and process control. Feature: 230 V compatibility with a 22 kW rating allows simple retrofits and minimal wiring changes. Business Impact: Faster project timelines and lower installation costs. Application: Retrofit projects in existing 230 V infrastructure. Feature: ACS880 family integration provides consistent configuration, parameterization, and service support. Business Impact: Streamlined commissioning and reduced spare-parts footprint. Application: New builds and refurbishments across industrial automation. Feature: Compact module footprint and modular design support scalable systems. Business Impact: Lower panel space, easier upgrades, and reduced BOM. Application: Multi-line installations with space constraints.
Get a Quick Quote for a ABB 3AXD50000036399
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000036399?
Enquire Now
FAQs
Retrofitting starts with confirming 230 V supply availability and ensuring the 94 A current rating is compatible with the drive and motor. Plan cable routing, install appropriate protective devices, mount the drive in an enclosure meeting your environmental standards, and configure the ACS880 parameters using the ABB software. Verify wiring integrity, perform a functional test, and document each step for regulatory compliance.
The 22 kW rating supports high-torque startups and stable speed regulation across dynamic loads. This enables precise control for conveyors, pumps, and fans, reducing mechanical stress and energy usage during ramping and operation. In practice, you gain improved process stability, lower throughput variability, and longer motor life with reduced energy waste.
Yes. The 22 kW, 94 A, 230 V specifications suit many mid-to-large conveyors and pump applications. Its ACS880-based platform provides reliable speed and torque control, smooth starts and stops, and straightforward integration with existing 230 V infrastructure. For best results, tailor the drive settings to your load profile and implement proper startup ramp rates to minimize mechanical wear.
The drive carries IEC-based performance ratings for 22 kW, 94 A at 230 V and is UL-listed for 30 Hp, 90 A, 230 V, supporting compliance and safety in North American environments. Typical safety features in this class include robust overcurrent protection and fault diagnostics, with standardized parameter access for safe commissioning and ongoing monitoring in automated lines.
Expect a measurable ROI from improved energy efficiency, reduced motor wear, and lower downtime due to smoother operation. The drive's diagnostic capabilities simplify preventive maintenance and reduce unplanned outages. In new installs, the ACS880 family provides a familiar configuration flow, faster commissioning, and a smaller BOM, contributing to lower lifecycle costs.
