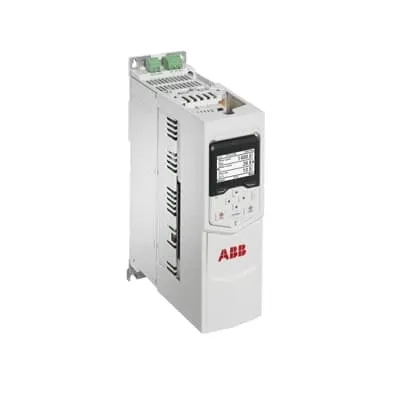

ABB 3AXD50000036402 LV AC machinery drive module - UL Pld 2 Hp, 480 V
Part Number: 3AXD50000036402
Quick Summary
LV AC machinery drive module from ABB provides precise motor speed control for industrial automation applications such as conveyors, pumps, and fans. Engineers often face integration challenges that balance performance with safety and regulatory compliance. This model supports IEC 2.2 kW power rating and UL Pld 2 Hp at 480 V, ensuring robust, certified operation in demanding environments. With compatibility across ABB's ACS880 family and standard fieldbus interfaces, it simplifies installation, diagnostics, and spare-parts planning. The result is improved efficiency, reduced energy consumption, and a clearer path to scalable automation for OEMs and maintenance teams, while maintaining traceability and serviceability across the plant.
Product Information
Feature: Compact LV AC machinery drive module design reduces panel footprint and simplifies wiring. Business Impact: Shorter installation times, lower cabinet costs, and easier maintenance through a single, integrated drive. Application: Ideal for mid-range power applications in conveyors, pumps, and fans in manufacturing lines. Feature: 2.2 kW IEC power rating with 4.8 A at 400 V. Business Impact: Precise motor sizing enhances efficiency and reduces energy waste, supporting predictable performance. Application: Suitable for mid-size motors on new equipment or retrofits. Feature: Global compatibility via 400 V / 480 V operation. Business Impact: Enables multi-region installations, reduces spare part variety, and simplifies procurement. Application: International deployments with diverse supply systems. Feature: UL Pld 2 Hp, 4.5 A, 480 V specification and compliance. Business Impact: Ensures safety certification and regulatory confidence for asset owners. Application: Critical for OEMs delivering to regulated sectors. Feature: Compatibility with the ACS880-M04-04A8-5 family. Business Impact: Leverages ABB service ecosystem, firmware updates, and diagnostic tooling. Application: Retrofit projects or new line builds requiring consistent control software. Feature: Fieldbus interfaces and diagnostic capabilities. Business Impact: Reduces commissioning time and enables remote monitoring. Application: Control panels with Ethernet, PROFINET, or Modbus in plant networks.
Get a Quick Quote for a ABB 3AXD50000036402
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000036402?
Enquire Now
FAQs
Plan for 480 V supply compatibility, verify motor rating aligns with 2.2 kW capability, and mount the module in a ventilated control cabinet. Use standard fieldbus interfaces and ABB wiring guidelines to simplify commissioning and ensure full diagnostic visibility.
The unit is specified for a 2.2 kW IEC power rating with 4.8 A at 400 V, and UL listing for 2 Hp at 480 V, providing aligned motor load capability and certified performance for cross-region deployments.
Yes. The device is designed for common conveyors, pumps, and fans, delivering precise speed control, energy efficiency, and reliable operation within ABB’s ACS880 ecosystem for easy integration.
It features IEC-based power specifications and UL listing (Pld 2 Hp at 480 V), ensuring regulatory compliance and safer integration in regulated industries.
Expect reduced energy consumption through optimized motor speed control, lower wiring and cabinet costs from a compact module, and easier maintenance via ABB’s diagnostics, spare parts, and retrofit compatibility with existing ACS880 assets.
