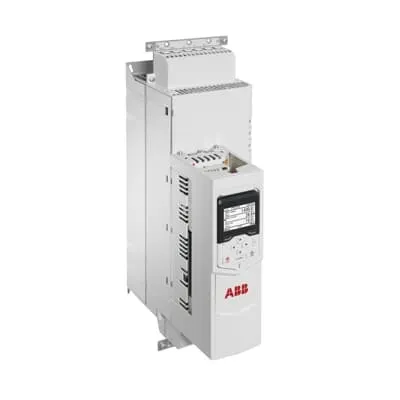

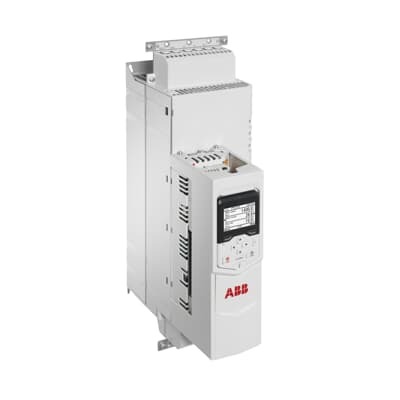

ABB 3AXD50000036408 LV AC Drive Module - 11 kW UL
Part Number: 3AXD50000036408
Quick Summary
ABB 3AXD50000036408 is a LV AC drive module enabling precise motor speed and torque control for industrial machines. Engineers frequently contend with downtime, setup complexity, and inconsistent performance from variable-speed drives. Key certifications include UL listing for the Pld 15 Hp, 23 A, 480 V configuration, supporting safe integration across diverse plant environments. Designed for reliability and straightforward integration, it reduces maintenance costs and accelerates commissioning. By aligning with ABB's drive ecosystem, this module supports energy-efficient operation and scalable automation across multiple lines.
Product Information
Power rating and voltage compatibility drive system-wide efficiency. Feature: 11 kW IEC rating with 25 A at 400 V; UL: 15 Hp, 23 A at 480 V. Business Impact: Enables unified motor control across 400–480 V networks, reducing panel complexity and spare parts. Application: Pumps, fans, conveyors in industrial facilities benefit from consistent performance and reduced wiring variance. Feature: Compatibility with the ACS880 family as an integrated module. Business Impact: Streamlines spare parts, firmware updates, and operator training. Application: New builds and plant retrofits gain faster deployment and easier maintenance. Feature: Precise speed control and torque management with robust ramping capabilities. Business Impact: Lowers energy consumption, extends motor life, and improves process stability. Application: HVAC, material handling, and process lines rely on predictable automation. Feature: Protective functions including overcurrent, overvoltage, and thermal protection. Business Impact: Increases uptime, reduces unplanned downtime, and protects expensive motors. Application: Critical manufacturing lines needing dependable operation. Feature: Compact LV module design and straightforward panel integration. Business Impact: Saves panel space, shortens wiring runs, and accelerates commissioning. Application: OEMs and integrators upgrading existing facilities. Feature: UL-listed configuration supporting safe, compliant installations. Business Impact: Facilitates regulatory adherence and international deployment. Application: Global plant networks requiring consistent safety standards.
Get a Quick Quote for a ABB 3AXD50000036408
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000036408?
Enquire Now
FAQs
To install, begin by selecting a suitable enclosure space, ensure 400 V power is de-energized, and mount the drive module. Connect 400 V supply lines to the drive input, wire the motor leads to the output terminals, and establish control connections to the PLC or HMI. Finally, configure basic parameters such as motor rating, drive control mode, and safety interlocks, then perform a controlled ramp test to verify performance and protection functions.
Yes. The module is designed for precise speed and torque control of motors used in conveyors and pumps. Its 11 kW IEC rating with compatible current and voltage ranges supports reliable variable-speed operation, improving process stability, energy efficiency, and downtime reduction in material handling and fluid systems.
The IEC specification is 11 kW with 25 A at 400 V, while the UL configuration provides 15 Hp with 23 A at 480 V. These dual voltage/current profiles enable cross-compatibility with 400 V and 480 V industrial networks, simplifying procurement for global installations and ensuring consistent motor control across regions.
The ABB 3AXD50000036408 drive module is UL-listed, which supports safe operation and compliance with electrical safety standards in many markets. This certification enables smoother internal audits, safer integration with regional electrical codes, and confidence during global deployments in panel assemblies and machinery.
Expected ROI comes from reduced energy consumption due to precise speed control, lower downtime thanks to robust protective features, and faster commissioning with a compact, integrated module. The solution also simplifies maintenance by leveraging ABB’s drive ecosystem, reducing spare parts variety and training time for technicians.
