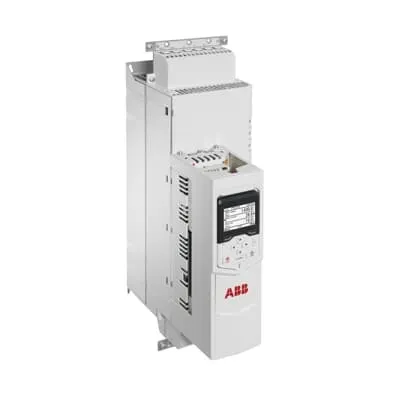

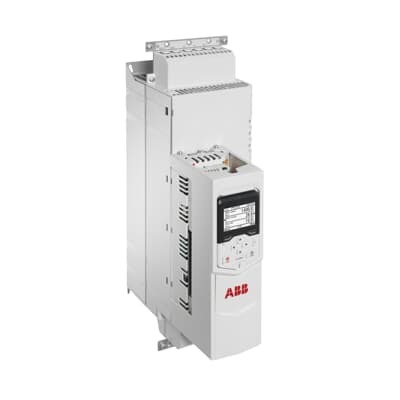

ABB 3AXD50000036409 LV AC Machinery Drive Module - UL Listed
Part Number: 3AXD50000036409
Quick Summary
LV AC machinery drive module is a compact, high-performance controller for precise motor control across conveyors, pumps, and processing equipment. Manufacturers often face long integration cycles and conflicting control interfaces when upgrading drives, leading to costly downtime. This solution carries CE marking and UL listings, aligning with IEC-based standards for safer, compliant deployments. By integrating with ABB ACS880 family and utilizing pre-wired connections, it reduces commissioning time and lowers total cost of ownership. For engineers and procurement teams, this translates into predictable performance, easier service, and a clearer path to scalable automation across facilities. This combination supports lean maintenance practices and plant-wide reliability.
Product Information
The module delivers precise LV AC motor control with a 15 kW IEC rating and 30 A at 400 V, and a UL-rated 20 Hp at 480 V. This dual-rating compatibility minimizes reconfiguration during upgrades, lowering project risk and reducing downtime. It is well suited for conveyors, pumps, and processing lines where load profiles vary. Feature: Pre-wired, compact module design simplifies installation and reduces panel space. Business Impact: Faster commissioning and lower wiring errors during field deployment. Application: Particularly beneficial for retrofit projects in packaging lines and material handling. Feature: CE marking and UL listings provide safety and regulatory confidence. Business Impact: Streamlined audits and safer operations across facilities. Application: Suitable for mixed European and North American manufacturing sites. Feature: Compatibility with the ABB ACS880 drive family ensures seamless integration with existing control architectures. Business Impact: Reduces spare parts inventory and supports unified maintenance practices. Application: Works with standard ABB control workflows across plant-wide automation. Feature: Robust reliability and modular design enable easier service and lower lifecycle costs. Business Impact: Lower total cost of ownership and predictable performance under variable loads. Application: Suitable for high-demand environments in packaging, discrete manufacturing, and process lines.
Get a Quick Quote for a ABB 3AXD50000036409
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000036409?
Enquire Now
FAQs
Begin by confirming voltage and current compatibility: 400 V line for IEC 15 kW/30 A and 480 V line for UL 20 Hp/28 A. Refer to the ACS880-M04-030A-5 reference for wiring topology, pre-wired connections, and integrated control signals. Use ABB installation guidelines to verify enclosure clearance, conductor sizing, and protective devices. After wiring, perform a standard commissioning sequence: parameter import, motor test run, and load validation. This approach minimizes commissioning time and reduces field wiring errors, while ensuring safe, compliant operation.
The module supports a 15 kW IEC rating with 30 A at 400 V, and a UL-rated 20 Hp with 28 A at 480 V, referencing the ACS880-M04-030A-5 series. It is designed as a LV AC machinery drive module suitable for precise motor control in industrial automation. These ratings enable direct compatibility with common motor loads such as conveyors, pumps, and grinders, simplifying project specifications and procurement.
Yes. The 3AXD50000036409 is purpose-built for motor control in packaging, conveyors, and material handling. Its dual IEC/UL rating supports both European and North American installations, and its integration with the ACS880 family ensures consistent performance with existing drive architectures. This makes it a reliable choice for high-demand, continuous-operation applications where speed control and uptime are critical.
The module carries CE marking for European safety compliance and UL listings for North American safety standards, aligning with broad regulatory expectations across manufacturing sites. While specific IP or SIL ratings depend on the enclosure and installation, the base product supports industry-standard safety certifications, facilitating smoother audits and certification processes during plant upgrades.
Expect a shorter time-to-value from faster commissioning due to pre-wired connections and compatible ratings. Energy-efficient motor control reduces operating costs, while modular design simplifies servicing and spare parts management. The combination of ABB’s ACS880 ecosystem and robust safety certifications also lowers risk, improves uptime, and supports longer intervals between maintenance activities, delivering a favorable total cost of ownership.
