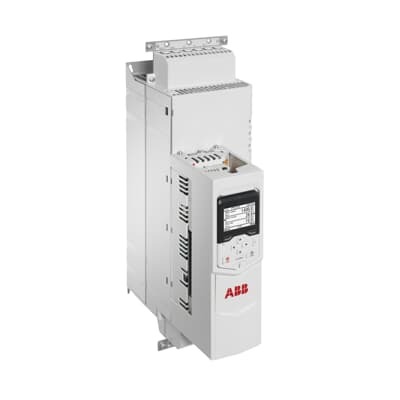

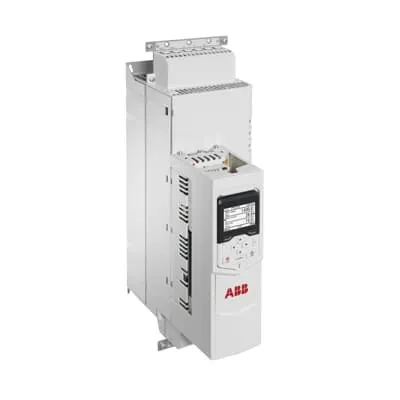

ABB ACS880 LV drive module 3AXD50000036412 - UL Pld 30 Hp
Part Number: 3AXD50000036412
Quick Summary
ABB ACS880 LV drive module controls and protects motors in industrial automation systems. It delivers reliable speed control for conveyor, pump, and machine tool applications, helping reduce startup shocks and energy waste. UL listing safety and IEC-based ratings ensure safe, compliant operation across diverse OEM environments. Designed for easy panel integration and scalable performance, it supports uptime goals and lower total cost of ownership, making it a dependable choice for mid-range automation projects. This module fits seamlessly into ACS880 family deployments, enabling engineers to streamline commissioning and maintenance while delivering consistent, measurable performance gains.
Product Information
Feature: 22 kW IEC-rated drive module provides scalable power for moderate-to-heavy loads. Business Impact: Delivers consistent torque, smoother ramps, and reduced energy waste, which lowers operating costs over the equipment life. Application: ideal for conveyors, pumps, and machine tools in manufacturing lines. Feature: UL-listed safety with built-in protections enhances reliability and simplifies compliance. Business Impact: reduces risk of electrical faults and streamlines safety documentation for audits. Application: suitable for machine control panels in harsh industrial environments. Feature: Compact, modular design facilitates straightforward installation and panel space optimization. Business Impact: speeds up commissioning, reduces enclosure footprint, and supports easier future expansion. Application: OEM panel builders and retrofit projects across packaging and automation floors. Feature: Diagnostics and compatibility within the ACS880 family enable proactive maintenance. Business Impact: supports predictive maintenance, minimizes unscheduled downtime, and improves asset utilization. Application: large-scale manufacturing lines requiring high availability. Feature: 400 V input with UL 480 V compatibility broadens deployment. Business Impact: enables flexible site wiring and supplier interoperability. Application: global OEMs deploying multi-voltage motor systems in diverse facilities.
Get a Quick Quote for a ABB 3AXD50000036412
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000036412?
Enquire Now
FAQs
The 3AXD50000036412 unit is designed as part of ABB’s ACS880 LV drive family and matches the 22 kW IEC rating with 400 V inputs, plus UL-listed performance at 480 V. For seamless compatibility, verify the model ACS880-M04-050A-5 configuration, mounting features, and wiring schemes in your control panel to ensure consistent control philosophy and protection settings.
The 22 kW rating delivers ample torque with precise speed modulation, minimizing torque ripple and startup shocks. The 50 A current capability supports reliable acceleration and load handling, reducing mechanical wear and energy waste. For conveyors, this translates to smoother motion profiles, improved throughput, and lower maintenance costs over the system’s life.
Plan for a panel with adequate space for the drive module and wiring clearance, proper heat dissipation, and clean power connections for 400 V and 480 V variants. Use appropriate fusing and EMI suppression, and align the wiring with ACS880 documentation. Favor a modular layout that allows future expansion without reworking the entire panel.
The module carries UL listing, supporting electrical safety and reliability in industrial environments, alongside IEC-based power specifications. While CE marking isn’t explicitly stated here, confirm regional requirements with your compliance team and ABB documentation. Maintain proper labeling, wiring standards, and documentation to satisfy audits and customer specifications.
Expected ROI derives from energy efficiency, reduced motor wear due to smoother starts and stops, and lower downtime thanks to built-in diagnostics. The module’s compatibility with the ACS880 family also streamlines spare parts management and maintenance planning, enabling predictable service intervals and faster fault isolation in automated production lines.
