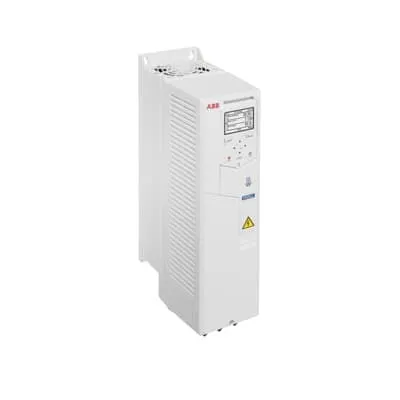

ABB 3AXD50000038993 HVAC drive - IP21 enclosure
Part Number: 3AXD50000038993
Quick Summary
ABB ACH580 HVAC drive controls fans, pumps and compressors in HVAC systems with precise speed control. Many installations suffer from lengthy commissioning and tuning; built-in HVAC-specific settings simplify startup and reduce downtime. This device carries UL-listed safety, IP21 enclosure, and optional IP55 and flange mounting, reinforcing reliability across environments. Its integrated features boost efficiency and ease procurement, aligning with ABB ecosystem and HVAC project timelines. The intuitive control panel and optional Bluetooth enable remote commissioning and monitoring, while IP21 protection supports wall-mounted installations in typical plant rooms. Designed for HVAC applications such as air-handling units and chillers, it shortens startup times and reduces wiring complexity.
Product Information
Extended Description
3AXD50000038993 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature: Built-in HVAC control for fans, pumps and compressors. Business Impact: Reduces installation time and commissioning effort, delivering faster project timelines and lower labor costs. Application: Ideal for air-handling units, chillers and ventilation systems where smooth, energy-efficient operation is essential. Feature:HVAC-specific primary settings menu and help assistants. Business Impact: Simplifies startup and reduces error-prone configuration, improving first-pass commissioning success. Application: On-site technicians and commissioning engineers benefit from guided parameters and real-time diagnostics in HVAC environments. Feature: Optional Bluetooth connectivity for commissioning and monitoring. Business Impact: Enables remote setup and ongoing performance checks, cutting site visits and accelerating fault isolation. Application: Remote HVAC system tuning in plant rooms and service corridors. Feature: Built-in protection with IP21 enclosure and wall-mount capability (IP55 and flange options available). Business Impact: Enhances installation flexibility and environmental resilience, reducing enclosure-related risk and simplifying mounting in serviced areas. Application: Wall-mounted installations in commercial buildings and data centers with ruggedized installation options. Feature: UL-listed safety and documented performance for 7.5 kW, 400 V, 17 A operation. Business Impact: Supports compliance with safety standards and predictable energy performance, aiding procurement and maintenance planning. Application: HVAC drives used in HVAC fans, pumps and compressors across mid-size facilities. Industry insight: As HVAC systems demand tighter energy management and faster commissioning, the ACH580 product line is well-positioned to integrate with standard plant controls, delivering measurable efficiency gains and a lower total cost of ownership over a typical equipment lifecycle.
Get a Quick Quote for a ABB 3AXD50000038993
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000038993?
Enquire Now
FAQs
The ACH580 HVAC drive provides built-in control suitable for fans, pumps and compressors in HVAC systems, delivering precise speed control and smooth start-stop transitions. It is designed for LV applications and wall mounting, with HVAC-focused settings to simplify configuration and tuning, reducing commissioning time and improving system responsiveness in air-handling units and chillers.
Key specs include a 7.5 kW rating, 400 V line voltage and a 17 A current draw under nominal operation. The unit is UL-listed and available in an IP21 enclosure by default, with IP55 and flange mounting options. The model referenced is ACH580-01-018A-4, suitable for HVAC equipment control with compact footprint.
Yes. The ACH580 is a wall-mounted LV AC drive designed for HVAC use, featuring IP21 protection by default and optional IP55 and flange-mounted variants. Its compact footprint and integrated HVAC controls make it well-suited for wall installation in mechanical rooms, rooftop units and duct-integrated systems, reducing wiring and space requirements.
The drive is UL-listed for safety and performance in HVAC applications and comes with an IP21 enclosure as standard, with IP55 and flange-mount options available. While CE markings are commonly expected for industrial equipment, the documented certification in this data is UL-listed and IP-rated, which supports compliance in many regional markets.
The ACH580 offers built-in HVAC-specific settings, intuitive control panels and optional Bluetooth for remote commissioning and monitoring, reducing on-site visits and commissioning time. This translates to lower maintenance labor, faster fault diagnosis, and energy-efficient operation, contributing to a shorter payback period and a lower total cost of ownership over the system lifecycle.
