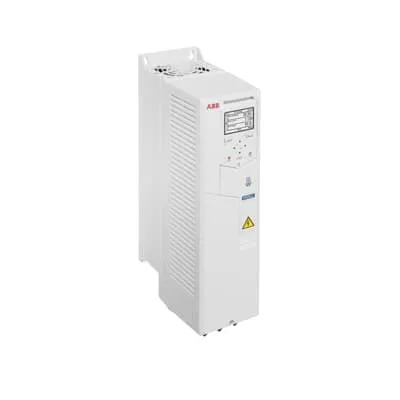

ABB 3AXD50000038994 ACH580 HVAC Drive - IP21 Wall-Mount
Part Number: 3AXD50000038994
Quick Summary
The ACH580 HVAC drive from ABB is a wall-mounted LV AC drive for HVAC systems controlling fans, pumps and compressors. During installation and commissioning, engineers face long setup times and integration challenges with building management systems, resulting in higher on-site labor and extended project timelines. Key certifications and ratings include UL-listed safety and an IP21 enclosure, with IP55 and flange-mount options to fit varied indoor environments. Designed for reliability and ease of use, this drive simplifies commissioning, supports energy-efficient operation, reduces service visits through robust diagnostics, and aligns with modern HVAC control strategies in commercial buildings. The compact, wall-mounted form also saves space in equipment rooms.
Product Information
Extended Description
3AXD50000038994 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Built-in HVAC-specific control algorithms give the ACH580 precise speed and torque management for fans, pumps and compressors, translating to measurable energy savings and reduced motor wear. By matching fan curves to load, the drive helps HVAC systems reach setpoints faster and maintain stable temperatures in air handling units and chillers, delivering lower running costs and improved comfort. This feature set is particularly valuable in retrofit projects where existing controls must be harmonized with legacy equipment. The intuitive control panel includes an HVAC primary settings menu and built-in help assistants, accelerating startup and commissioning while reducing risk of misconfiguration. Applications range from variable-volume air handling to pump-down configurations, enabling standardization of settings across multiple units and facilities. Optional Bluetooth connectivity enables commissioning and monitoring from a distance, cutting on-site service visits and enabling proactive maintenance. Real-time diagnostics and remote parameter tuning support continuous optimization of energy use and system uptime in commercial buildings and data centers. Flexible mounting and enclosure options, including IP21 by default with IP55 and flange mounting variants, simplify installation in tight equipment rooms and retrofit scenarios, while ensuring compatibility with existing infrastructure. Electrical compatibility is clear: Pn 11 kW, 25 A, 400 V with UL-listed safety and Pld 15 Hp, 21.0 A, ensuring reliable compatibility with common HVAC motors and accessories. This combination reduces mismatch risk, improves procurement confidence, and supports compliant, safe operation across industrial HVAC projects.
Get a Quick Quote for a ABB 3AXD50000038994
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000038994?
Enquire Now
FAQs
The ACH580 HVAC Drive is designed for HVAC applications such as fans, pumps, compressors, air handling units and chillers. It supports standard low-voltage motor control with a rating around 11 kW and 400 V, enabling integration with common HVAC equipment and building automation systems.
Model 3AXD50000038994 corresponds to the ACH580 HVAC Drive rated at 11 kW (Pn), 25 A input current, and 400 V supply. It is UL-listed for safety and features an IP21 enclosure, with UL Pld 15 Hp / 21.0 A performance for motor compatibility.
Yes, the ACH580 HVAC Drive offers optional Bluetooth connectivity, enabling remote commissioning and monitoring. This reduces on-site visits, accelerates tuning, and supports ongoing performance optimization through mobile or remote interfaces.
The standard installation is wall-mounted with an IP21 enclosure. ABB also offers IP55 and flange mounting variants, providing installation flexibility for tight equipment rooms, retrofit projects, and various indoor environments.
Expected ROI stems from faster commissioning, reduced energy consumption due to precise HVAC control, fewer field service visits thanks to remote diagnostics, and improved system reliability across fans, pumps and chillers in commercial buildings and data centers.
