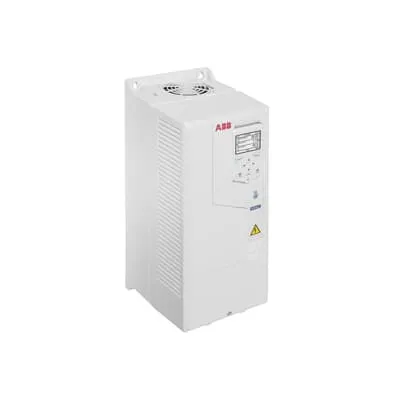

ABB ACH580-01-033A-4 HVAC Drive - IP21/IP55 Enclosure
Part Number: 3AXD50000038995
Quick Summary
ACH580 HVAC drive from ABB is a wall-mounted LV AC drive for control of fans, pumps, and compressors in HVAC. Installing and commissioning drive systems can drain time and introduce tuning errors; this device targets those pain points with an intuitive setup. It ships with an IP21 enclosure as standard, with IP55 and flange-mount variants available, and it is UL-listed for up to 20 Hp. Built-in HVAC primary settings and help assistants streamline startup, while optional Bluetooth support enables remote commissioning and monitoring. Together, this translates to faster project timelines, fewer field adjustments, and reliable, energy-efficient motor control across commercial HVAC applications.
Product Information
Extended Description
3AXD50000038995 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature → Business Impact → Application: Built-in HVAC-focused controls for fans, pumps and compressors reduce commissioning time and energy waste, enabling reliable operation in air handling units and chillers. Application: Suitable for AHUs, pumps, and cooling systems in office buildings and industrial facilities. Feature → Business Impact → Application: Intuitive control panel with HVAC primary settings menu and help assistants simplifies startup and reduces field wiring errors. Application: Accelerates installation in new builds and retrofit projects. Feature → Business Impact → Application: Optional Bluetooth capability enables remote commissioning and monitoring, cutting on-site visits and enabling proactive maintenance. Application: Ideal for remote facilities, data centers, and multi-site HVAC networks. Feature → Business Impact → Application: IP21 standard enclosure with IP55 and flange-mount options offers installation flexibility and environmental protection without redesigns. Application: Wall-mounted installations in restricted spaces or rugged environments. Feature → Business Impact → Application: IEC rated 15 kW, 32 A at 400 V with UL listing up to 20 Hp and 27 A provides clear electrical compatibility and safety compliance. Application: Direct drive for 15 kW HVAC drives, compatible with 400 V three-phase systems. Feature → Business Impact → Application: Compact, purpose-built HVAC drive reduces total cost of ownership through energy efficiency and simplified maintenance. Application: Long-term cost savings in commercial and light industrial HVAC installations.
Get a Quick Quote for a ABB 3AXD50000038995
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000038995?
Enquire Now
FAQs
Yes. The ACH580-01-033A-4 is designed as a wall-mounted LV AC drive for HVAC applications, supporting 15 kW IEC ratings and 32 A at 400 V, with IP21 standard enclosure and optional IP55/flange-mount variants for flexible installation.
Key specs include IEC Pn 15 kW, 32 A at 400 V, and UL-listed performance up to 20 Hp with 27 A. It’s engineered for HVAC loads such as fans, pumps, and compressors.
Yes. Built-in HVAC-specific controls and a dedicated settings menu are tailored for fans, pumps, compressors, AHUs, and chillers, enabling smooth start-up and precise speed control for energy-efficient operation.
The device is UL-listed for HVAC use and ships with IP21 enclosure as standard, with IP55 options available. These protections support safe operation in typical HVAC environments.
Built-in features reduce setup time, the intuitive interface lowers commissioning risk, and optional Bluetooth supports remote monitoring. These translate to faster projects, fewer site visits, and measurable energy savings.
