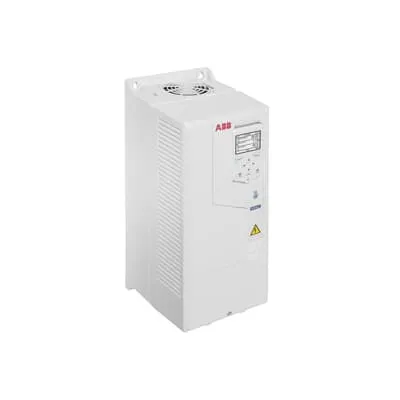

ABB ACH580 HVAC Drive - IP21/IP55, 22 kW, 400 V, UL Listed
Part Number: 3AXD50000038997
Quick Summary
The ACH580 HVAC Drive from ABB is a compact wall-mounted controller for fans, pumps, and compressors in HVAC systems. Engineers often struggle with lengthy commissioning and complex integration during HVAC retrofits. It ships with CE and UL certifications and offers IP21 standard with IP55 options for tougher environments. Built-in HVAC-specific controls and an intuitive panel shorten startup time, while Bluetooth enables remote commissioning. Together these features support energy efficiency, reliable operation, and faster project realization for building service contractors.
Product Information
Extended Description
3AXD50000038997 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature: Built-in HVAC controls for fans, pumps and compressors. Business Impact: Delivers smoother operation, energy efficiency, and reduced wear, cutting overall lifecycle costs. Application: Air handling units and commercial chillers where precise variable-speed control matters. Feature: Intuitive control panel with HVAC primary settings menu and help assistants. Business Impact: Accelerates commissioning, reduces parameter errors, and simplifies maintenance routines. Application: New builds and retrofits in data centers, hospitals, and office campuses. Feature: Optional Bluetooth capability for commissioning and monitoring. Business Impact: Enables remote startup, diagnostics, and updates, lowering on-site service time. Application: Remote sites and multi-building facilities with centralized oversight. Feature: IP21 enclosure standard with IP55 and flange-mount options. Business Impact: Increases installation flexibility and environmental protection, enabling safer wall mounting. Application: Plant rooms with space constraints or harsh environments. Feature: Rated 22 kW, 400 V, 45 A with UL Pld 30 Hp, 44 A capability. Business Impact: Ensures compatibility with mid-size HVAC loads while reducing cabinet footprint. Application: Chillers, large AHUs, and energy-intensive pumping systems. Feature: Built-in energy-saving algorithms and integration readiness. Business Impact: Lowers energy bills and supports compliance with building efficiency programs. Application: Commercial and industrial HVAC projects aiming for LEED/ASHRAE targets.
Get a Quick Quote for a ABB 3AXD50000038997
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000038997?
Enquire Now
FAQs
The ACH580 is rated for 22 kW at 400 V and draws up to 45 A, suitable for mid-size HVAC loads. It is designed as a wall-mounted drive with an IP21 enclosure standard, and IP55 options are available for tougher environments. When retrofitting, ensure proper clearance for access to the control panel, and verify that the local control scheme supports HVAC-specific motor control profiles.
Key specs include a 22 kW power rating, 400 V input, 45 A current, and UL Pld 30 Hp protection (44 A). The unit is available in an IP21 enclosure by default, with IP55 and flange-mount options. Bluetooth capability is optional for remote commissioning and monitoring, and it supports HVAC applications such as fans, pumps, and compressors.
Yes. The ACH580 is designed to drive fans, pumps, and compressors commonly found in air handling units, chillers, and pumping systems. Its built-in HVAC controls and intuitive setup streamline commissioning for AHUs and chilled-water plants, while the compact wall-mount form saves cabinet space in retrofit projects.
The ACH580 is CE-certified and UL-listed, reflecting compliance with global safety standards. It supports IP21 enclosure protection by default, with IP55 options for harsher environments, and provides a robust platform for HVAC installations that require reliable, standards-compliant motor control.
The ACH580 offers faster commissioning through HVAC-specific menus and help assistants, reducing startup time and commissioning labor. Its energy-efficient drive algorithms lower operating costs, while optional Bluetooth enables remote monitoring and diagnostics, reducing on-site service visits and enabling proactive maintenance for improved uptime.
