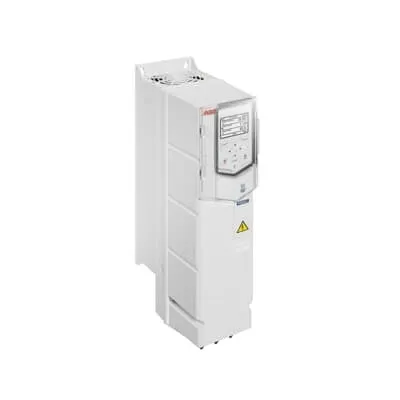

ABB 3AXD50000039010 HVAC Drive - IP21 Enclosure
Part Number: 3AXD50000039010
Quick Summary
ABB ACH580 HVAC drive is a wall-mounted LV AC drive that powers fans, pumps and compressors in HVAC systems. This solution tackles the common challenge of lengthy commissioning and complex setup by offering built-in control functions and an intuitive startup process. Its IP21 enclosure standard, with IP55 and flange mounting options available, supports safe operation across typical and demanding environments, while UL compatibility reinforces reliability. By combining energy-efficient operation with easy installation and remote commissioning options, this drive delivers measurable business value for HVAC installers, maintenance teams, and specifiers seeking scalable control for air handling units and chillers.
Product Information
Extended Description
3AXD50000039010 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature → Business Impact → Application: Built-in control for fans, pumps and compressors reduces commissioning time and minimizes wiring complexity, delivering faster startup and lower installation costs for HVAC projects. This translates to quicker system turnover and reduced on-site labor, especially in large AHU deployments where multiple drives are deployed across the plant. Feature → Business Impact → Application: IP21 standard enclosure with optional IP55 and flange mounting units supports safe installation in wet or dusty environments, enabling robust performance in mechanical rooms and rooftop installations. Feature → Business Impact → Application: 7.5 kW, 400 V, 17 A rating aligns with common HVAC motor loads, improving energy efficiency and drive sizing accuracy for fans and pumps, reducing energy waste and peak current. Feature → Business Impact → Application: Bluetooth commissioning and monitoring capability enables remote setup and diagnostics, decreasing site visits and enabling predictive maintenance for critical HVAC systems. Feature → Business Impact → Application: Intuitive HVAC-focused primary settings menu and help assistants simplify startup, commissioning and operation, decreasing risk of misconfiguration and improving operator confidence.
Get a Quick Quote for a ABB 3AXD50000039010
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000039010?
Enquire Now
FAQs
The ACH580 is a wall-mounted LV drive designed for HVAC use, accommodating 7.5 kW loads at 400 V and up to 17 A. It ships in an IP21 enclosure, with IP55 and flange mounting options available for more demanding environments. For installers, the device reduces wiring complexity and supports straightforward commissioning via HVAC-focused menus.
Key specs include 7.5 kW (IEC), 400 V input, and 17 A output with a compact, wall-mounted footprint. These ratings suit medium-sized fans, pumps, and compressors typical of AHUs and chillers. The drive’s efficiency and motor current control translate to energy savings, smoother fan/pump operation, and reduced electrical stress on connected equipment.
Yes. The ACH580 HVAC drive is purpose-built for HVAC applications, featuring built-in controls for fans, pumps and compressors and a HVAC-oriented settings menu. Its compatibility with IP21 standard and optional IP55, plus remote commissioning, makes it suitable for AHUs, cooling towers and small to mid-size chillers while delivering stable, energy-efficient operation.
The unit uses an IP21 enclosure with optional IP55 for harsher environments, providing essential protection in mechanical rooms and roof installations. The product is designed to align with common industry standards for HVAC drives and is referenced with UL considerations in its spec; users should verify local CE/UL requirements per project to ensure full compliance.
Built-in HVAC-specific features, intuitive commissioning, and remote Bluetooth monitoring shorten startup time and reduce commissioning costs. The drive’s energy-efficient operation lowers running costs for fans and pumps, while reliable control improves system uptime. Together, these factors contribute to a faster payback and lower total cost of ownership in HVAC projects.
