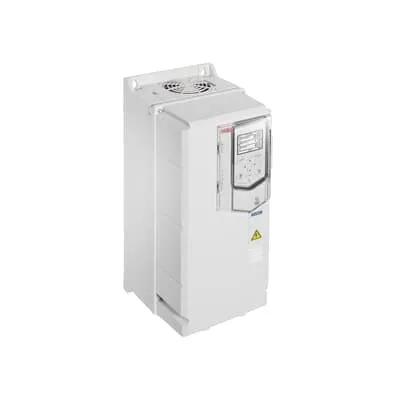

ABB 3AXD50000039012 HVAC Drive - IP21 Wall-Mount
Part Number: 3AXD50000039012
Quick Summary
The ACH580 HVAC drive is a compact LV AC drive designed to optimize fans, pumps and compressors in HVAC systems. It reduces commissioning time and prevents misconfiguration by integrating essential HVAC control features and a guided setup. With UL listing and IP21 protection, this wall-mounted drive delivers reliable safety and predictable performance, with optional IP55 and flange-mount variants for tougher environments. As a wall-mounted HVAC drive, it enables energy-efficient operation and straightforward remote commissioning when Bluetooth is enabled. This combination supports facilities teams seeking faster startup, lower operating costs, and compliant, long-term reliability in commercial and light-industrial settings.
Product Information
Extended Description
3AXD50000039012 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Built-in HVAC control functions simplify startup and reduce field wiring. This enables energy-efficient operation by coordinating fans, pumps and compressors from a single drive, minimizing energy waste in air handling units and chillers. Feature: Intuitive control panel with an HVAC-specific primary settings menu. Business impact: Faster commissioning and fewer settings errors, lowering labor costs and project risk. Application: Quick deployment in new builds or retrofits where uptime is critical. Feature: Optional Bluetooth commissioning and monitoring. Business impact: Enables remote setup and diagnostics, reducing on-site visits and service time. Application: Useful for distributed HVAC networks and facilities management. Feature: Standard IP21 enclosure with wall-mount mounting; optional IP55 and flange options. Business impact: Flexible installation in indoor spaces; space-saving and adaptable to harsher environments with alternative enclosures. Application: Wall-mounted installations in rooftop or mechanical rooms. Feature: UL-listed safety and robust electrical ratings (Pn 15 kW, 32 A, 400 V). Business impact: Compliance with safety standards and reliable performance for load profiles. Application: Suitable for medium-power HVAC drives powering large fans and pumps.
Get a Quick Quote for a ABB 3AXD50000039012
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000039012?
Enquire Now
FAQs
The ACH580 is designed as a wall-mounted unit with a standard IP21 enclosure and wall-mounting. Optional IP55 and flange mounting configurations are available to suit tougher environments or different installation constraints.
Key ratings include a power rating of 15 kW, current up to 32 A, at 400 V. The drive is UL-listed for safety, supports HVAC loads such as fans and pumps, and is suitable for medium-power applications.
Yes. It features an HVAC-specific control panel and a guided setup to reduce programming errors, plus an optional Bluetooth capability for remote commissioning and monitoring, minimizing on-site visits.
It is well-suited for controlling fans, pumps and compressors in air handling units, chillers and other HVAC equipment, delivering coordinated operation and energy-efficient performance in commercial and light-industrial environments.
The drive is UL-listed and available with an IP21 enclosure by default, with optional IP55 and flange-mount configurations to meet varied safety and environmental requirements.
