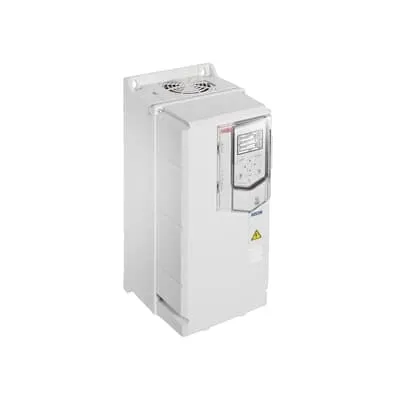

ABB 3AXD50000039013 ACH580 HVAC Drive - IP21/IP55 Options
Part Number: 3AXD50000039013
Quick Summary
ABB ACH580 HVAC drive controls fans, pumps, and compressors in commercial and industrial HVAC systems. Installing a new HVAC drive can mean long commissioning times and complex wiring, but this model is designed to streamline startup and reduce on-site labor. With UL listing for 25 Hp performance and an IP21 enclosure (IP55 option available), it meets essential safety and reliability standards. The onboard HVAC-focused controls plus an optional Bluetooth capability enable remote commissioning and monitoring, delivering energy-efficient operation and simplified setup. For system integrators and facility managers, this combination translates to faster projects, lower maintenance costs, and measurable ROI through improved equipment uptime and controllable energy use.
Product Information
Extended Description
3AXD50000039013 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature: Built-in HVAC-focused control for fans, pumps and compressors → Business Impact: Enables smooth operation and energy-efficient control, reducing wear and maintenance while improving system responsiveness in HVAC environments → Application: Air handling units, rooftop units, and chillers benefit from consistent fans and pumps operation with minimal setup. Long-tail keywords: HVAC drive integration, energy-efficient HVAC control, ACH580 built-in controls.Feature: Intuitive control panel with HVAC primary settings and help assistants → Business Impact: Accelerates startup, reduces commissioning time, and minimizes field diagnostics → Application: Commissioning new HVAC installations or retrofits in commercial buildings and industrial facilities. Long-tail keywords: HVAC commissioning tools, easy startup, HVAC drive settings.Feature: Optional Bluetooth capability for remote commissioning and monitoring → Business Impact: Cuts site visits, improves fault finding, and enables off-site tuning → Application: Distributed HVAC systems and multi-site facilities seeking centralized oversight. Long-tail keywords: Bluetooth HVAC drive, remote commissioning, remote monitoring.Feature: IP21 enclosure standard with IP55 option and wall mounting → Business Impact: Flexible installation in varied environments with robust protection, easing retrofit projects → Application: Wall-mounted HVAC drives in equipment rooms or on-site locations where cabinet space is limited. Long-tail keywords: IP21 enclosure, IP55 option, wall-mounted drive.Feature: UL listing for 25 Hp and 34 A performance; 18.5 kW drive; 400 V input → Business Impact: Ensures compliance with safety standards and compatibility with common HVAC motor ratings, reducing procurement risk → Application: Commercial rooftop units, AHUs, and pump packages that require certified, high-performance drives. Long-tail keywords: UL listed HVAC drive, 18.5 kW drive, 400 V motor control.
Get a Quick Quote for a ABB 3AXD50000039013
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000039013?
Enquire Now
FAQs
The ACH580 HVAC drive is designed for wall mounting with IP21 enclosure standard. For harsher environments or where cabinet space is limited, IP55 and flange mounting options are available. This provides flexible integration across modular HVAC installations, making retrofits or new builds simpler and safer while preserving accessible wiring and service clearances.
This model handles up to 18.5 kW (Pn) with a 400 V input and current around 38 A, with UL listing indicating suitability for up to 25 Hp applications and up to 34.0 A. These specs align with typical HVAC motor loads such as fans and pumps, ensuring robust performance in commercial and light-industrial settings.
Yes. The ACH580 HVAC drive is purpose-built for HVAC equipment like fans, pumps, and compressors found in air handling units, chillers, and similar systems. Its built-in HVAC control features, combined with its remote commissioning options and protective IP-rated enclosures, make it a strong fit for centralized or distributed HVAC architectures.
The drive is UL-listed for specific horsepower ratings, which supports safety compliance and reliability in the United States. It also offers IP21 as standard with IP55 as an option, providing protective ratings suitable for different installation environments. These certifications and ratings help installers meet regulatory and safety requirements while ensuring equipment longevity.
Bluetooth remote commissioning enables off-site setup, diagnostics, and monitoring, reducing the need for on-site visits. This accelerates startup, minimizes downtime, and supports ongoing optimization of HVAC processes. It is particularly beneficial for multi-site facilities or systems with distributed drives where centralized monitoring improves maintenance planning and energy management.
