ABB 3AXD50000039014 HVAC Drive - IP21 Enclosure
Part Number: 3AXD50000039014
Quick Summary
ABB ACH580 HVAC drive is a wall-mounted variable-speed controller for HVAC fans, pumps, and compressors. Many projects struggle with long commissioning times and complex wiring when upgrading to VSDs. UL-listed safety, IP21 wall-mount enclosure, and optional IP55/flange mounting help ensure reliable, code-compliant operation in demanding environments. Its built-in HVAC controls and intuitive panel accelerate startup and commissioning, reducing on-site time. This drive simplifies motor control and integration into building automation systems, delivering energy efficiency and predictable performance for comfort and process-critical HVAC loads. With 22 kW IEC ratings and optional Bluetooth for remote commissioning, it supports easier maintenance and lower total cost of ownership across retrofit and new-build projects.
Product Information
Extended Description

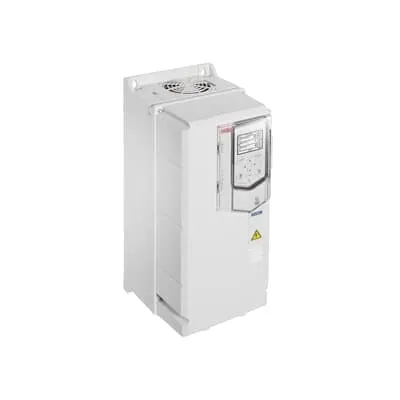

3AXD50000039014 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Built-in HVAC-specific control features give the ACH580 a faster path from install to operation. The drive ships with a purpose-built primary settings menu and help assistants that guide startup, commissioning, and ongoing operation, reducing programming errors and commissioning time. It also includes profiles tuned for fans, pumps, and compressors, simplifying selection for common HVAC loads. In HVAC applications such as air-handling units and rooftop units, installers benefit from a single, pre-tuned solution that aligns with industry best practices, saving weeks of project time and minimizing on-site configuration mistakes. IP21-rated wall-mount enclosure simplifies placement in standard mechanical rooms and on corridors, while compact dimensions help meet space constraints. Optional IP55 variants and flange-mount kits expand installation flexibility, enabling safe mounting on walls, ducts, or equipment frames. This flexible mounting approach reduces retrofitting complexity and supports quick integration into existing control cabinets, lowering installation costs and risk. Bluetooth connectivity, available as an option, enables commissioning and monitoring from a distance, cutting site visits and enabling proactive maintenance. Remote access supports fault diagnosis, parameter adjustment, and trend analysis without on-site presence, improving uptime for critical HVAC loads. The drive's electrical robustness is matched to real-world HVAC duty, with 22 kW IEC power, 400 V supply, and 45 A operating current (IEC) and UL-listed 30 Hp, 44.0 A ratings, ensuring compatibility with common fan and pump motors. The drive supports efficient operation across variable loads, delivering measurable energy savings and reduced peak demand. Energy efficiency and simplified integration are reinforced by the intuitive interface and built-in control logic that adapt to evolving system demands, while centralized monitoring via building automation enables demand-responsive control and predictive maintenance.
Get a Quick Quote for a ABB 3AXD50000039014
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000039014?
Enquire Now
FAQs
Begin with a prepared mounting surface and verify 400 V supply eligibility. Mount the ACH580-01-046A-4+B056 unit on a suitable wall, connect the three-phase input and motor leads per the wiring diagram, and configure the built-in HVAC profile via the primary settings menu. Use the intuitive panel to set basic parameters, enable Bluetooth if remote commissioning is required, and perform a controlled startup to verify motor rotation and load matching. The IP21 enclosure simplifies installation in standard mechanical rooms, and optional IP55 or flange kits can be added for harsher environments or alternative mounting schemes.
The unit is rated for 22 kW IEC at 400 V with a nominal current of 45 A (IEC). UL listings confirm 30 HP, 44.0 A performance at rated load. These specs align with typical HVAC fans, pumps, and compressors, enabling efficient variable-speed operation across a wide load range. This combination supports reliable performance while enabling energy savings through precise motor control.
Yes. The ACH580 HVAC drive is designed for HVAC loads such as air-handling units, fans, pumps, and compressors. Its built-in HVAC control features, intuitive settings, and compatibility with standard control architectures make it ideal for AHUs and chillers. The option for Bluetooth remote commissioning further simplifies commissioning in large AHU installations or multi-unit chiller plants, reducing on-site time and accelerating project timelines.
The drive is UL-listed for safety and designed with an IP21 wall-mount enclosure for standard installation. Optional IP55 variants and flange mounting kits extend installation flexibility to harsher environments or alternative mounting configurations. These certifications and options help ensure compliant operation in commercial buildings, data centers, and other spaces requiring reliable, regulated motor control.
By enabling precise motor control and ramping, the ACH580 reduces energy consumption in variable-load HVAC applications, translating to lower utility costs. Remote commissioning and diagnostics via Bluetooth minimize on-site visits, cutting maintenance time and labor costs. The intuitive interface lowers training requirements, and built-in fault detection improves uptime, delivering a favorable total cost of ownership over the system’s lifecycle.
