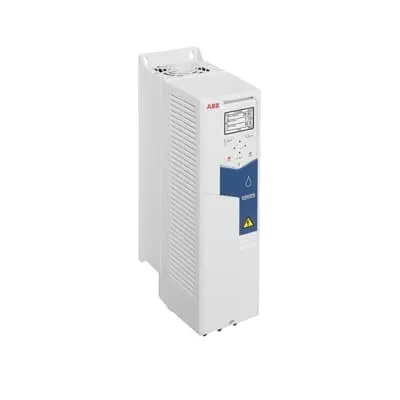

ABB 3AXD50000039027 LV AC Wall-Mounted Drive - IP21/IP55
Part Number: 3AXD50000039027
Quick Summary
ABB LV AC wall-mounted drive for water and wastewater pumping delivers efficient motor control for municipal pumps. It helps eliminate energy waste, reduce downtime, and extend pump life in challenging infrastructure sites. With CE conformity and IP21 standard housing (IP55 flange options available), it balances safety and rugged operation. Leveraging built-in pump features and the energy calculator, you gain measurable energy savings and predictable maintenance windows. Compatibility with Drive Composer and Hand-Off-Auto control streamlines commissioning and on-site operation. Designed for wall mounting in water and wastewater installations, it simplifies space planning and service access.
Product Information
Extended Description
3AXD50000039027 ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean.
Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.
Sensorless flow calculation and multipump control reduce external sensor needs, cutting hardware costs and maintenance complexity. This delivers lower total cost of ownership while maintaining precise, responsive flow regulation. Application: municipal water networks and wastewater lift stations facing variable demand and pump cycling. The feature set also supports scalable configurations for plants transitioning from fixed-speed to dynamic flow regimes. Level control, soft pipe fill, and dry run protection guard pumps and piping, minimizing surge and impeller wear while extending equipment life. These features reduce startup shocks and maintenance events, boosting uptime in critical lift stations and treatment facilities. Industry-standard wiring practices and plug-and-play accessories shorten field setup and simplify future expansions. Quick ramps enable controlled acceleration and deceleration, reducing electrical stress and mechanical wear. The built-in energy calculator visualizes energy savings opportunities, supporting ongoing optimization and compliance with energy-management programs. Application: variable-speed pumping in water distribution and wastewater transfer for lower operating costs. Operators also benefit from smoother commissioning and better protection against water hammer. Hand-Off-Auto control panel, Drive Composer PC tool, and an optional Bluetooth control panel streamline commissioning and on-site operation. This combination shortens startup times, simplifies diagnostics, and enables remote monitoring for maintenance planning and rapid fault isolation. Role-based access and diagnostics via Drive Composer help technicians trend performance and plan preventive maintenance. IP21 enclosure is standard, with IP55 and flange mounting options offering installation flexibility in wet environments. Wall-mounted design saves space and improves service access in compact plant rooms, supporting robust, reliable pumping solutions across water and wastewater infrastructure. These installation choices help meet utility requirements and simplify regulatory compliance for field deployments.
Get a Quick Quote for a ABB 3AXD50000039027
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000039027?
Enquire Now
FAQs
The 3AXD50000039027, an LV AC wall-mounted drive variant of the ACQ580 family, is optimized for water and wastewater pumping. It supports sensorless flow calculation, multipump sequencing, level control, and dry run protection, making it ideal for municipal pumping stations, lift stations, and industrial water transfer systems that require reliable, energy-efficient operation and compact installation.
Key features include sensorless flow calculation, multipump control, level control, soft pipe fill, and dry run protection, plus quick ramps and an energy calculator. Together these reduce wear, minimize surge, optimize pump sequencing, and quantify energy savings over time. In practice, this translates to longer pump life, lower maintenance costs, and more predictable performance in variable-demand water and wastewater schemes.
Enclosure options include IP21 as standard, with IP55 flange mounting units available for harsher environments. It is designed for wall mounting, simplifying space planning in compact plant rooms. This combination supports easy retrofits and compliant installations in both new builds and upgrades of water treatment and distribution systems.
The built-in energy calculator helps quantify potential savings from speed control and efficient pump operation. Sensorless flow reduces sensor cabling, while rapid commissioning and remote diagnostics reduce downtime. Over a typical pumping skid, these features yield lower lifecycle costs, shorter payback periods, and improved plant reliability for water and wastewater facilities.
The drive works with Hand-Off-Auto control panel, Drive Composer PC tool, and an optional Bluetooth panel for quick setup and monitoring. This supports faster start-up, easier parameter tuning, and remote troubleshooting, ensuring operators can optimize performance without extensive on-site intervention.
