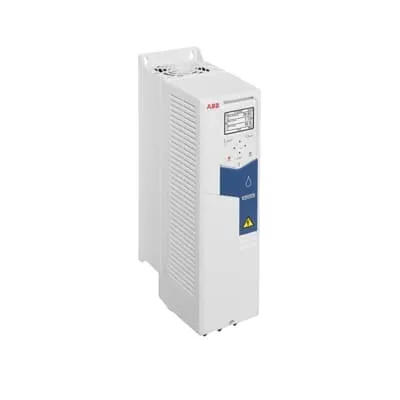

ABB 3AXD50000039028 ACQ580-01 LV Drive - IP21 Rating
Part Number: 3AXD50000039028
Quick Summary
ABB 3AXD50000039028 ACQ580-01 LV drive delivers precise pump control for water and wastewater systems. Operators struggle with energy waste, variable flow, and equipment wear when pumps run inefficiently. It ships with an IP21 enclosure as standard, with IP55 and flange-mount options for tougher environments, plus sensorless flow calculation, dry-run protection, and level control to boost reliability. These capabilities translate into lower energy costs and extended pump life, while easy setup with Hand-Off-Auto and Drive Composer accelerates commissioning in municipal water and wastewater facilities.
Product Information
Extended Description
3AXD50000039028 ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean.
Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.
Feature: Sensorless flow calculation. Impact: reduces the need for external flow meters, lowering upfront costs and maintenance points. Application: municipal and industrial pumping where head varies and sensor reliability is critical. Feature: Multipump control. Impact: optimizes energy use and reduces wear by coordinating pump sequencing and start/stop events. Application: pump trains and parallel pumping setups in wastewater facilities. Feature: Level control and dry-run protection. Impact: prevents dry running, protects impellers, and minimizes unscheduled downtime. Application: lift stations and treatment plants with fluctuating demand. Feature: Soft pipe fill and quick ramps. Impact: smoother starts, reduced mechanical stress, and quieter operation, contributing to longer equipment life. Application: large centrifugal pumps in constrained spaces. Feature: Built-in energy calculator and intuitive controls. Impact: enables real-time energy tracking and faster commissioning, lowering operating costs. Application: ongoing optimization in water/wastewater systems. Feature: IP21 standard enclosure with IP55 option and flange mounting. Impact: flexible installation choices and easier compliance with space and environmental constraints. Application: wall-mounted installations in plantrooms and space-limited sites.
Get a Quick Quote for a ABB 3AXD50000039028
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000039028?
Enquire Now
FAQs
The drive is designed for wall-mounted installation with an IP21 enclosure as standard. It supports 400 V three-phase supply and 11 kW nominal power, with optional IP55 enclosure or flange mounting options for harsher environments. Use the Hand-Off-Auto panel or Drive Composer PC tool for commissioning, and consider the Bluetooth control panel for remote monitoring once installed.
Key specs include Pn 11 kW, 25 A, 400 V (ACQ580-01 variant), wall-mounted IP21 housing (IP55 optional), and features like sensorless flow calculation, multipump control, level control, dry-run protection, soft pipe fill, and quick ramps. It is optimized for water and wastewater pumping applications with compact form factor and integrated energy analytics.
Yes. The drive includes multipump control to coordinate sequencing, prevent surge, and optimize energy consumption across multiple pumps. It enhances reliability in lift stations and treatment plants where multiple pumps operate in parallel or alternation modes, reducing wear and downtime while maintaining steady system performance.
The standard IP21 enclosure covers typical indoor plantroom environments, while IP55 is available for higher protection against dust and water ingress. These ratings help ensure reliable operation in exposed or damp environments common to water and wastewater installations, supporting longer service life and safer maintenance.
The built-in energy calculator, sensorless flow capability, and dry-run protection drive measurable energy savings and reduced pump wear. Quick ramps and level control minimize mechanical stress, lowering maintenance cycles. Combined with easier commissioning through Drive Composer and Hand-Off-Auto, projects achieve faster deployment and longer asset life with lower total cost of ownership.
