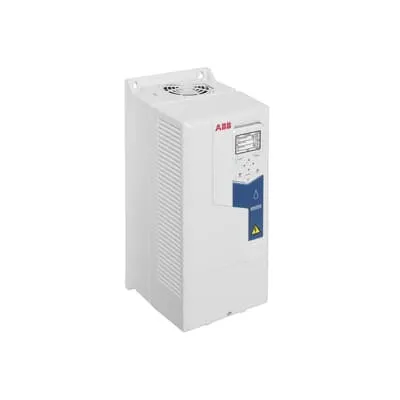

ABB 3AXD50000039031 LV AC wall-mounted drive - IP21/IP55 variants
Part Number: 3AXD50000039031
Quick Summary
ABB LV AC wall-mounted drive for water and wastewater applications optimizes pump performance and energy use. Operators often struggle with sudden pump starts, energy waste, and equipment wear that drive maintenance costs and downtime. The device is CE-certified with IP21 standard enclosure and IP55 options for harsher environments, plus several flange-mount variants to fit tight spaces. Built-in energy calculation, sensorless pump features, and multipump control support reliable operation across varying demands. With Hand-Off-Auto operation, Drive Composer tooling, and optional Bluetooth for remote setup, you gain faster commissioning, traceable performance, and lower total cost of ownership.
Product Information
Extended Description
3AXD50000039031 ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean.
Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.
Compact wall-mounted design with IP21 standard enclosure provides space-efficient installation and easy cable routing, reducing floor-space needs and maintenance access time in congested pump rooms. Sensorless flow calculation and multipump control deliver precise flow management and energy reduction, improving process stability in watering and wastewater stations. Level control and dry run protection safeguard pumps from unwarranted operation, lowering maintenance costs and extending equipment life in utility infrastructure. Soft pipe fill and rapid ramping minimize water hammer and pressure transients, protecting piping networks and reducing system wear in treatment facilities. Hand-Off-Auto, Drive Composer, and Bluetooth-enabled commissioning streamline setup and remote diagnostics, accelerating project timelines and reducing on-site labor. An integrated energy calculator provides expected savings estimates, supporting ROI analysis and ongoing energy management across municipal and industrial pumping applications.
Get a Quick Quote for a ABB 3AXD50000039031
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000039031?
Enquire Now
FAQs
The drive features a compact wall-mounted design with an IP21 standard enclosure and optional IP55 variants, plus flange-mount configurations for flexible installation in space-constrained rooms. It integrates with Hand-Off-Auto panels and Drive Composer for straightforward commissioning, minimizing site disruption and enabling quick retrofits to existing pump systems.
This drive delivers 22 kW power at 400 V three-phase, drawing about 45.0 A under load. It is designed for low-voltage applications and supports standard water treatment and wastewater pumping configurations. Confirm enclosure options (IP21 standard, IP55 variants) and compatibility with Drive Composer for parameterization and validation before integration.
Yes. Built for pump control in water utilities and wastewater facilities, it includes features like sensorless flow calculation, multipump control, level management, dry run protection, and soft-start behavior. These capabilities enable reliable operation, energy-efficient pumping, and safer maintenance practices in municipal and industrial pumping systems.
The device is CE-certified and available in IP21 enclosure with IP55 options and flange-mount variants. Safety features include dry run protection and protected operation modes. These specifications help ensure regulatory compliance, electrical safety, and suitability for challenging environmental conditions in water and wastewater environments.
Deploying the ABB drive supports measurable ROI through energy savings from efficient motor control, reduced pump wear due to soft-start capabilities, and fewer unplanned maintenance events thanks to dry run protection. The Drive Composer and Hand-Off-Auto interface shorten commissioning times, while energy calculators help justify the investment with clear payback projections.
