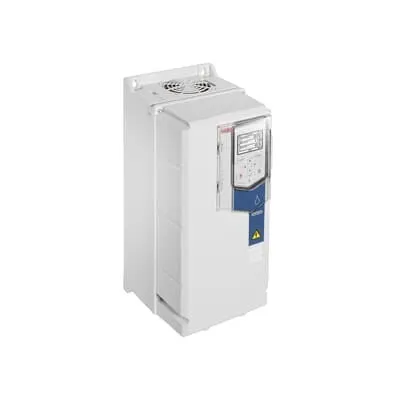

ABB 3AXD50000039048 ACQ580-01 Wall-Mounted Drive - 22 kW IP21
Part Number: 3AXD50000039048
Quick Summary
ABB ACQ580-01 wall-mounted drive enables efficient LV AC motor control for water and wastewater pumping. Many plants struggle with energy waste and pump wear due to imperfect control and lack of advanced pump features. This CE-compliant solution is available in IP21 standard (with IP55 and flange mounting options), delivering robust protection for demanding environments. It includes built-in pump functionality such as sensorless flow calculation, multipump control, and level management, plus an energy calculator to quantify savings. Hands-on usability is enhanced through the Hand-Off-Auto control panel, Drive Composer PC tool, and an optional Bluetooth control panel, accelerating commissioning and reducing downtime while improving overall plant reliability.
Product Information
Extended Description
3AXD50000039048 ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean.
Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.
Feature: Sensorless flow calculation provides accurate flow estimation without external sensors. Business Impact: Reduces instrumentation costs and enables tighter process control, lowering energy consumption in water and wastewater pumps. Application: Municipal lift stations and wastewater treatment facilities where sensor installation is impractical or cost-prohibitive. Feature: Multipump control and level control coordinate pump operation to meet varying demand. Business Impact: Minimizes peak electrical demand and extends pump life by preventing over-cycling, delivering predictable head and flow in variable-load scenarios. Application: Wastewater pumping networks with multiple pumps and variable water levels. Feature: Dry run protection and soft pipe fill mitigate pump wear and water hammer. Business Impact: Protects critical pumps, reduces maintenance cycles, and preserves piping integrity, improving OEE. Application: New installations and retrofits in pipeline networks with start/stop events. Feature: Quick ramps and built-in energy calculator enable fast commissioning and measurable savings. Business Impact: Shorter commissioning windows and quantified energy reductions support project ROI. Application: Plant startups, commissioning phases, and continuous improvement programs. Feature: Intuitive Hand-Off-Auto panel, Drive Composer PC tool, and optional Bluetooth control panel streamline operation and remote diagnostics. Business Impact: Faster training, easier troubleshooting, and remote oversight, reducing on-site service time. Application: Day-to-day operation in plant floors and control rooms, with remote commissioning needs.
Get a Quick Quote for a ABB 3AXD50000039048
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000039048?
Enquire Now
FAQs
Install on a stable wall or cabinet, ensuring adequate ventilation and clearance for wiring. Use the standard IP21 enclosure or opt for IP55 when exposed to harsher environments. Mount near the pump control panel, route motor and sensor cables separately, and configure the H-O-A panel for straightforward on-site operation. Leverage Drive Composer for commissioning and verification of sensorless control settings.
The drive delivers 22 kW of power with a 400 V supply and a current rating of 45 A. It is designed as a wall-mounted LV drive with variants offering IP21 standard enclosure and optional IP55, suitable for water and wastewater applications with compact footprint and integrated pump features.
Yes. The ACQ580-01 includes multipump control and level control built in, enabling coordinated sequencing and stable pumping in networks with multiple pumps and varying head requirements, reducing energy use and maintenance while enhancing system reliability.
The drive is CE-compliant and available in IP21 standard, with IP55 and flange-mounting options for more demanding environments, providing appropriate protection for walls and equipment cabinets in process facilities.
Expected ROI comes from measurable energy savings via the built-in energy calculator and optimized pump operation. Maintenance is reduced through features like dry run protection and sensorless control, while Drive Composer and optional Bluetooth support simplify upgrades, diagnostics, and remote monitoring.
