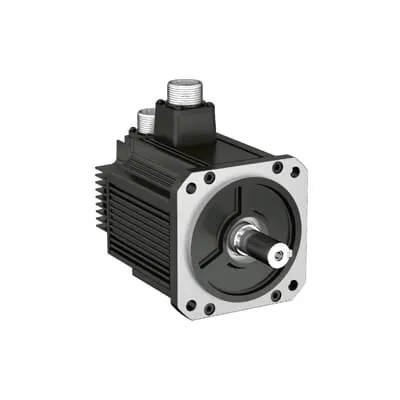

ABB 3AXD50000041268 LV AC Servo Motor - Absolute Encoder
Part Number: 3AXD50000041268
Quick Summary
ABB 3AXD50000041268 LV AC servo motor delivers precise positioning for automated packaging and manufacturing systems. Engineers struggle with lengthy machine setup, demanding homing cycles, and inconsistent torque that hamper uptime. When selecting motors, consider CE compliance for European markets, SIL-rated safety integration with ABB drives, and enclosure IP protection for demanding environments. With the absolute encoder option and compatibility with MotiFlex e180 and MicroFlex e190 drives, this motor helps reduce setup time, boost productivity, and improve product quality.
Product Information
Extended Description
3AXD50000041268 ABB: eSM servo motor is available in various flange sizes, with high torque density and quick dynamic response. The servo motors have a high reliable, low-maintenance, and energy efficient design. Combined with the MotiFlex e180 and MicroFlex e190 servo drives, the overall system reliability and efficiency are greatly improved. eSM motor encoder provides precise position information. An absolute encoder can eliminate homing cycles, reducing machine set-up time. All features make the motor meet the demands of higher productivity and product quality.
High torque density and rapid dynamic response translate to faster cycle times and tighter motion control, directly boosting throughput in high-speed packaging and automated assembly. The business impact is measurable: improved line efficiency, reduced cycle time, and better process stability. This motor is designed to work with ABB servo drives, delivering seamless commissioning and consistent performance in a production environment. The optional absolute encoder eliminates homing cycles, slashing machine downtime and accelerating changeovers, a critical advantage for multi-product lines. Compatibility with MotiFlex e180 and MicroFlex e190 drives simplifies integration, wiring, and maintenance, while ensuring system-wide reliability through a unified ABB ecosystem. Energy-efficient design minimizes running costs and extends motor life, reducing total cost of ownership. With multiple flange sizes and a robust mechanical frame, installation is straightforward and retrofit-friendly in existing lines. Its compact form factor supports tight spaces without compromising torque or precision.
Get a Quick Quote for a ABB 3AXD50000041268
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000041268?
Enquire Now
FAQs
Start by mounting the motor to a compatible flange, connect the 400 V power supply, and secure the encoder interface. Use ABB's MotiFlex e180 or MicroFlex e190 drives for synchronized control, ensuring proper parameterization of torque, speed, and position loops. Verify cabling integrity, perform a mechanical backlash check, and enable safety interlocks. The integrated ecosystem simplifies diagnostics via drive software, enabling quick commissioning and predictable performance in high-precision applications.
The motor delivers 3 kW nominal power with a nominal torque of 9.6 N·m at 400 V. It uses an eSM encoder with optional absolute positioning to reduce homing cycles. When paired with the MotiFlex e180 or MicroFlex e190 drives, it enables high-dynamic response, tight position control, and energy-efficient operation suitable for demanding automation tasks in packaging and assembly lines.
Yes. The 3AXD50000041268 is designed for high-precision positioning with fast dynamic response. Its 3 kW rating and 9.6 N·m torque support rapid, accurate motion essential for packaging and automated assembly. The optional absolute encoder further improves setup speed and repeatability, making it a strong fit for multi-product lines and tight tolerance processes.
Key considerations include CE compliance for European operations and safe integration with ABB safety drives to support SIL-rated safety systems. Depending on the installation, IP protection may be required for enclosure robustness in harsh environments. Verify certifications with your regional compliance team and ensure drive compatibility to maintain a compliant, safe automation system.
The motor's design emphasizes reliability and low maintenance, reducing service intervals and downtime. When paired with ABB drives, you gain unified diagnostics and spare-part compatibility, lowering lifecycle costs. The absolute encoder option reduces changeover and setup time, delivering faster ROI through higher line uptime and improved product quality.
