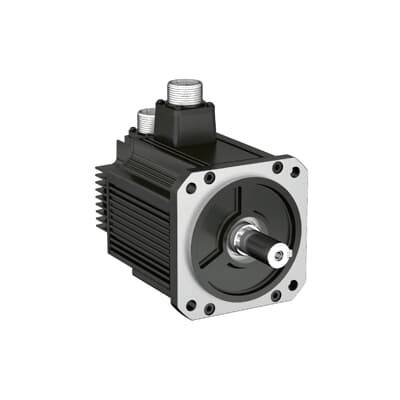

ABB 3AXD50000041269 eSM Servo Motor - Absolute Encoder
Part Number: 3AXD50000041269
Quick Summary
ABB 3AXD50000041269 eSM servo motor provides precise motion control for automated production lines. This solution addresses common uptime challenges by reducing setup time through its absolute encoder, which eliminates homing cycles and speeds machine start-up. Key certifications and standards include CE compliance, with readiness for SIL-ready control strategies and IP-rated deployments in demanding environments. By pairing with MotiFlex e180 and MicroFlex e190 drives, it delivers reliable, energy-efficient performance that translates into lower operating costs and higher quality output for high-mix, high-demand production scenarios.
Product Information
Extended Description
3AXD50000041269 ABB: eSM servo motor is available in various flange sizes, with high torque density and quick dynamic response. The servo motors have a high reliable, low-maintenance, and energy efficient design. Combined with the MotiFlex e180 and MicroFlex e190 servo drives, the overall system reliability and efficiency are greatly improved. eSM motor encoder provides precise position information. An absolute encoder can eliminate homing cycles, reducing machine set-up time. All features make the motor meet the demands of higher productivity and product quality.
Feature → Business Impact → Application: The 5 kW nominal power and 16.1 N·m nominal torque deliver strong torque density for rapid acceleration on compact footprints, enabling fast cycle times in packaging and robotics. This improves line throughput while maintaining energy efficiency, reducing total cost of ownership on automation lines that require precise positioning. Feature → Business Impact → Application: Absolute encoder feedback provides accurate position data and eliminates homing cycles, cutting setup time during line changes or product transitions and minimizing scrap from misalignment. Feature → Business Impact → Application: 400 V operation with energy-efficient design reduces energy consumption in long-running processes, delivering measurable annual energy savings in continuous or high-run-rate applications. Feature → Business Impact → Application: Compatibility with MotiFlex e180 and MicroFlex e190 drives simplifies integration, reduces commissioning time, and enhances system reliability across multiple axis configurations. Feature → Business Impact → Application: High reliability and low maintenance support longer service intervals and reduced downtime in demanding manufacturing environments, improving overall equipment effectiveness. Feature → Business Impact → Application: Various flange sizes and ABB’s robust engineering provide installation flexibility, enabling retrofit projects and scalable automation architectures without extensive mechanical redesign.
Get a Quick Quote for a ABB 3AXD50000041269
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000041269?
Enquire Now
FAQs
Integration is streamlined through compatible feedback signaling from the absolute encoder and standard servo control interfaces. Use the MotiFlex e180 or MicroFlex e190 as the primary drive platform, align the motor's torque and speed profiles to the application, and employ ABB's recommended parameter sets to achieve optimal dynamic response, reduced tuning time, and reliable multi-axis coordination.
The motor uses an absolute encoder that provides immediate, reference-position data without homing cycles. This eliminates lengthy zero-position searches during line changeovers, accelerates commissioning, and minimizes scrap due to misalignment. In high-mix environments, the encoder supports quick product changeovers and consistent repeatability across shifts.
Yes. With a 5 kW power rating and 16.1 N·m nominal torque, the 3AXD50000041269 offers strong torque density and fast dynamic response. Its compatibility with ABB servo drives, plus modular flange options, supports rapid acceleration and precise positioning required in packaging lines, while maintaining energy efficiency and reduced maintenance needs.
The motor is CE-compliant for safety and quality, supporting safe integration into European and global automation environments. Its design also aligns with industry practice for reliable control integration, including readiness for SIL-ready control strategies and adaptable protection configurations suitable for IP-rated installations in harsh manufacturing settings.
ROI comes from reduced setup time due to the absolute encoder, improved uptime from low-maintenance design, and energy savings from efficient 400 V operation. When paired with compatible drives like MotiFlex e180/e190, you gain faster changeovers, higher throughput, and reduced waste, which collectively shorten payback periods on automated production lines.
