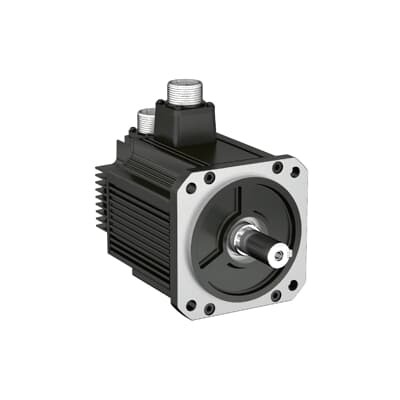

ABB Servo Motor 3AXD50000041366 - 1.5 kW IEC 220 V
Part Number: 3AXD50000041366
Quick Summary
ABB servo motor 3AXD50000041366 delivers precise motion control for compact machines and automated lines. Engineers often struggle with long setup times and inconsistent positioning; this motor's encoder options help reduce homing cycles and improve repeatability. It aligns with CE conformity and IEC-based electrical standards, offering reliable operation in harsh manufacturing environments. Designed for integration with MotiFlex e180 and MicroFlex e190 drives, it enables higher productivity, lower lifecycle costs, and easier scalability in industrial automation projects.
Product Information
Extended Description
3AXD50000041366 ABB: eSM servo motor is available in various flange sizes, with high torque density and quick dynamic response. The servo motors have a high reliable, low-maintenance, and energy efficient design. Combined with the MotiFlex e180 and MicroFlex e190 servo drives, the overall system reliability and efficiency are greatly improved. eSM motor encoder provides precise position information. An absolute encoder can eliminate homing cycles, reducing machine set-up time. All features make the motor meet the demands of higher productivity and product quality.
Feature: High torque density and 1.5 kW power enable compact machines to achieve faster cycle times and higher throughput. Business Impact: Increases output without enlarging footprint, reducing capital expenditure while preserving performance. Application: Packaging lines and robotic arm integrations benefit from improved speed and responsiveness. Feature: 220 V operation with Tn 4.78 N·m torque provides robust load handling across demanding processes. Business Impact: Maintains consistent motion under varying load, minimizing contour errors and scrap. Application: Pick-and-place and precision feeding in automated assembly lines gain tighter control. Feature: eSM encoder with optional absolute encoder supports precise position feedback and eliminates homing cycles. Business Impact: Shorter machine set-up and faster changeovers translate to higher OEE and reduced downtime. Application: High-precision CNC-style tasks and repetitive positioning in robotics. Feature: Energy-efficient, low-maintenance design delivers long-term cost savings and reliability. Business Impact: Lower operating costs and reduced maintenance intervals, improving total cost of ownership. Application: Continuous production environments where uptime matters most. Feature: Seamless compatibility with MotiFlex e180 and MicroFlex e190 servo drives simplifies integration and system engineering. Business Impact: Accelerates commissioning, reduces wiring complexity, and supports scalable control architectures. Application: Integrations within ABB automation ecosystems and existing control panels across manufacturing floors.
Get a Quick Quote for a ABB 3AXD50000041366
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000041366?
Enquire Now
FAQs
To install, mount the motor on a compatible flange, align the shaft with the driven load, and couple using a rigid coupling. Connect encoder feedback to the drive, wire power and earth per installation guidelines, and configure the MotiFlex e180 or MicroFlex e190 with the motor’s parameters (Pn, Tn, voltage). Run a low-speed test, then perform a controlled ramp to full speed while monitoring torque and position feedback for accuracy.
Key specifications include a nominal power (Pn) of 1.5 kW, a nominal torque (Tn) of 4.78 N·m, and operation at 220 V. The motor uses an eSM encoder for precise feedback, with the option to add an absolute encoder to eliminate homing cycles. These specs enable high-torque density and rapid dynamic response suitable for demanding automation tasks.
Yes. The 1.5 kW, 4.78 N·m motor delivers strong torque for quick accelerations and accurate positioning, ideal for packaging lines, robotic arms, and automated assembly. Its encoder options enhance repeatability, while compatibility with MotiFlex e180 and MicroFlex e190 drives supports scalable control. For robotics, the compact form factor plus high torque density helps meet space and performance constraints.
The motor is designed to comply with CE safety and electromagnetic compatibility standards and to meet IEC-based electrical specifications typical for industrial servo systems. For specific IP ratings or SIL-ready configurations, consult the product datasheet or ABB representative to confirm options available for your region and application environment.
Expect low maintenance due to robust design and high reliability, contributing to higher MTBF and reduced downtime. When paired with an absolute encoder, setup time decreases, accelerating changeovers and boosting OEE. Energy-efficient operation lowers running costs, and compatibility with existing ABB drives minimizes integration costs, delivering a favorable total cost of ownership over the motor’s operational life.
