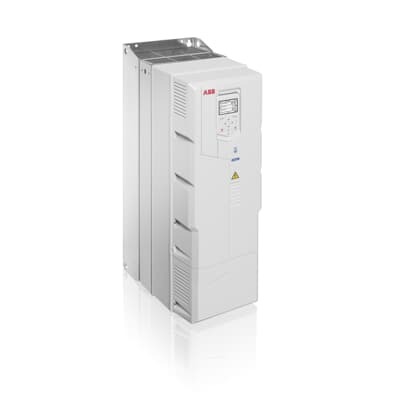

ABB 3AXD50000042305 HVAC Drive - Ultra-low Harmonic THDi <3%
Part Number: 3AXD50000042305
Quick Summary
ACH580 HVAC drive from ABB delivers precise motor control for HVAC fans, pumps and compressors. It helps you optimize system performance while reducing energy waste. Engineers often wrestle with harmonic distortion, difficult commissioning, and lengthy installation times. This drive features an integrated low harmonic line filter and an active supply unit, with an IP21 enclosure standard and optional IP55, plus CE and UL listings for compliance. By combining built‑in energy-management features such as output voltage boost and power factor correction with an HVAC‑specific control panel, you gain quicker setup, reliable operation, and measurable total-cost-of-ownership benefits for commercial and industrial chillers, AHUs, and air handling applications.
Product Information
Extended Description
3AXD50000042305 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. This ultra-low variant provides ultimate harmonic performance, reaching even less than 3 % THDi, and exceeding the requirements set by low harmonic recommendations.
The drive includes an active supply unit and integrated low harmonic line filter, meaning there is no need for external filters, multi-pulse arrangements or special transformers. Other features include output voltage boost and power factor correction. The built-in features significantly reduce installation time, and the intuitive HVAC specific control panel and help assistants make operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.
Feature → Business Impact → Application: Built-in active supply unit and integrated low harmonic line filter eliminates the need for external filters, reducing BOM and installation time while improving electrical reliability in HVAC systems. This simplifies site wiring and minimizes lead times for commissioning, especially on AHUs and chillers. Application: Control fans and pumps in air handling units with reduced harmonic distortion and faster project timelines. Feature → Business Impact → Application: Output voltage boost and power factor correction enhance motor performance, reduce line current, and support compliance with electrical standards. This translates to improved efficiency in high‑loads and mitigates grid penalties when running large HVAC motors. Application: Energy‑efficient fan and pump control in large commercial buildings. Feature → Business Impact → Application: HVAC‑specific control panel and intuitive help assistants streamline commissioning, while optional Bluetooth enables remote setup and monitoring, cutting on‑site time and service visits. Application: Rapid deployment in new builds or retrofits with centralized oversight. Feature → Business Impact → Application: Built‑in low harmonic technology delivers THDi under 3%, lowering electrical noise and improving power quality for sensitive electrical infrastructure. Application: Compliance and stability in mission‑critical HVAC plants. Feature → Business Impact → Application: IP21 enclosure standard with wall‑mount capability and optional IP55 expansion reduces footprint and enclosure complexity. Application: Space‑constrained mechanical rooms and retrofit projects. Features are designed to work together with HVAC equipment like AHUs, chillers, and split systems, delivering measurable energy savings, easier maintenance, and a lower total cost of ownership.
Get a Quick Quote for a ABB 3AXD50000042305
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000042305?
Enquire Now
FAQs
The drive uses a wall‑mounted IP21 enclosure by default, with IP55 optional for harsher environments. It requires a 400 V supply and appropriate protection devices. Ensure correct wiring for the integrated filter and active supply unit, and verify Bluetooth readiness if remote commissioning is planned. Compatible with HVAC equipment such as AHUs, chillers, and pumps.
The ACH580 delivers THDi below 3%, thanks to the built‑in low harmonic line filter and advanced control algorithms. This reduces electrical stress on upstream equipment, improves power quality, and supports compliance with harmonic limits, which in turn lowers energy waste and potential utility penalties for large HVAC drives.
Yes. The ACH580 is explicitly designed for fans, pumps, and compressors in HVAC systems, including air handling units and chillers. Its HVAC‑specific control panel, output voltage boost, and PF correction enable efficient, reliable operation, while the built‑in filter simplifies implementation and commissioning.
The product ships with an IP21 enclosure as standard, with IP55 available as an option. It carries CE and UL listings for regulatory compliance, and features a built‑in low harmonic filter to meet harmonic requirements without external components.
The integrated design reduces BOMs and installation time by eliminating external filters and multi-pulse configurations. Remote commissioning via Bluetooth, HVAC‑focused controls, and improved energy efficiency translate to lower lifecycle costs, fewer on‑site visits, and faster payback in commercial or industrial HVAC projects.
