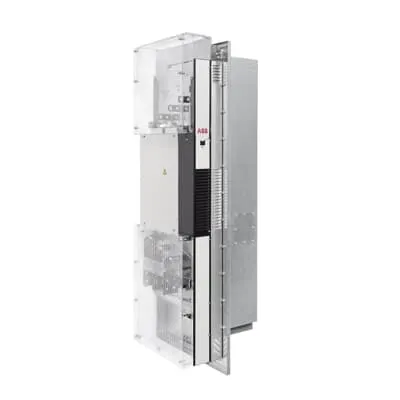

ABB 3AXD50000043461 Drive Module - ACS880 04F 630kW
Part Number: 3AXD50000043461
Quick Summary
The ABB ACS880 drive module is a flange-mounted LV AC motor drive for heavy automation. Engineers often struggle with mounting constraints, heat buildup, and wiring complexity when integrating high-power drives into compact panels. This model supports CE compliance and UL recognition, with IP-rated protection when installed in appropriate enclosures. With a 630 kW IEC rating and 880 A at 500 V (and UL’s 700 Hp, 857 A at 480 V), it delivers robust performance for demanding lines. In business terms, you gain faster installation, lower downtime, and scalable integration within ABB’s ACS880 ecosystem for consistent efficiency.
Product Information
Extended Description
3AXD50000043461 ABB: Flange mounting (push through mounting) version of ACS880-04
Feature: Flange-mounted push-through design enables compact installation and straightforward cabling. Benefit: Reduced panel depth, easier service access, and faster commissioning, translating to lower installation costs on conveyors and packaging lines. Application: Ideal for space-constrained machine layouts where uptime matters. Feature: High power density and wide voltage compatibility (630 kW IEC, 880 A at 500 V; UL configuration at 480 V). Benefit: Supports large motors without multiple drives, improving system reliability and reducing footprint. Application: Heavy-duty material handling, plastic extrusion, and metalworking equipment. Feature: Integrated protection and drive control suitable for harsh environments. Benefit: Higher mean time between failures and safer start/stop sequences, cutting maintenance costs. Application: Food & beverage packaging and textile machinery where consistent control matters. Feature: Push-through mounting compatibility with existing ABB ACS880 ecosystems. Benefit: Simplified retrofits and standardized maintenance across multiple lines. Application: Facilities with mixed vintages seeking a unified drive architecture. Feature: Compact form factor and robust mechanical fit reduce panel complexity. Benefit: Lower installation risk and faster project timelines, delivering quicker ROI. Application: New plant lines and equipment upgrades across manufacturing floors.
Get a Quick Quote for a ABB 3AXD50000043461
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000043461?
Enquire Now
FAQs
Yes. The 3AXD50000043461 is designed as a flange-mounted drive module compatible with the ACS880 family. It uses push-through mounting to streamline installation, reduce cabling complexity, and enable straightforward alignment with existing motor starters and control cabinets. When upgrading, verify mounting dimensions, panel space, and enclosure protection to preserve IP ratings and maintain thermal performance.
Key specifications include a 630 kW IEC rating with 880 A at 500 V for the main configuration, and UL configuration listing 700 Hp with 857 A at 480 V. The model variant ACS880-04F-880A-5 defines these parameters, offering strong torque control, smooth acceleration, and reliable operation for high-power motors used in conveyors and heavy automation.
High-demand applications such as conveyors, packaging lines, machine tools, mixers, and material handling systems benefit most. The flange-mounted design saves cabinet space, reduces installation time, and simplifies retrofits while delivering precise motor control, energy efficiency, and improved uptime in industrial environments.
The drive module is designed to meet CE marking and UL safety recognition, with IP protection achieved through appropriate enclosure selection. Compliance ensures suitability for European and North American deployments, supporting safe operation in industrial plants and heavy-duty automation environments.
Customers typically see faster installation, reduced panel complexity, and lower maintenance downtime due to robust protection and simplified wiring. The high efficiency and tight integration with the ACS880 ecosystem help reduce energy consumption and spare-part diversity, delivering a favorable total cost of ownership over the motor drive’s life cycle.
