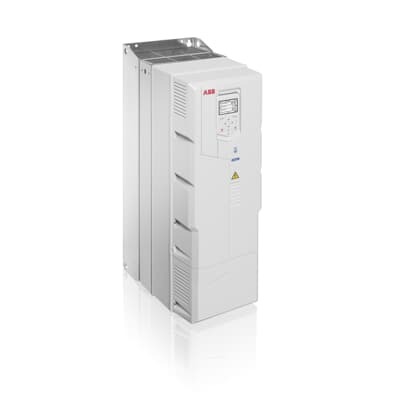

ABB 3AXD50000045383 HVAC Drive - Ultra-Low Harmonic
Part Number: 3AXD50000045383
Quick Summary
ABB 3AXD50000045383 HVAC Drive controls fans, pumps and compressors in HVAC systems. Many projects struggle with harmonic distortion, energy waste, and lengthy commissioning. This UL-listed drive features an IP21 enclosure with optional IP55 or flange mounting, delivering robust protection in mechanical rooms and challenging spaces. Built-in low-harmonic filtering, an integrated active supply unit, and power factor correction drive energy efficiency, while simplifying installation and commissioning. For facilities pursuing energy efficiency and smart-building integration, this HVAC drive offers reliable performance with reduced field wiring and faster setup. Its compact footprint supports tight plant layouts, and the modular options help future-proof upgrades for evolving HVAC loads.
Product Information
Extended Description
3AXD50000045383 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. This ultra-low variant provides ultimate harmonic performance, reaching even less than 3 % THDi, and exceeding the requirements set by low harmonic recommendations.
The drive includes an active supply unit and integrated low harmonic line filter, meaning there is no need for external filters, multi-pulse arrangements or special transformers. Other features include output voltage boost and power factor correction. The built-in features significantly reduce installation time, and the intuitive HVAC specific control panel and help assistants make operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.
Feature: Ultra-low harmonic performance with THDi <3% and built-in low harmonic line filter. Benefit: Reduces the need for external filters and complex multi-pulse configurations, lowering capital and installation time while improving power quality. Application: Ideal for HVAC fans, pumps, and compressors where harmonics impact transformer loading and energy waste. Feature: Built-in Active Supply Unit and Power Factor Correction. Benefit: Improves motor efficiency and dynamic response, enabling better energy management and compliance with utility requirements. Application: Air-handling units and chillers with variable loads to maximize efficiency gains. Feature: Enclosure and mounting versatility (IP21 standard, optional IP55 and flange mounting). Benefit: Easier integration into tight mechanical rooms or harsh environments, with flexible installation options. Application: Wall-mounted installations in plant rooms or ducted systems where space is at a premium. Feature: HVAC-specific control panel and intuitive commissioning assistants. Benefit: Reduces startup time, lowers commissioning costs, and improves operator usability. Application: New installations and retrofit projects where rapid, reliable setup matters. Feature: Optional Bluetooth commissioning and monitoring capability. Benefit: Enables remote configuration and fault diagnosis, minimizing on-site visits and speeding up maintenance. Application: Smart-building integrations and remote HVAC management.
Get a Quick Quote for a ABB 3AXD50000045383
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000045383?
Enquire Now
FAQs
This wall-mounted LV AC drive ships with an IP21 enclosure as standard and can be installed on the wall, with IP55 and flange mounting options available for harsher environments. It includes an active supply unit and an integrated low harmonic line filter, eliminating the need for external filters or transformers and simplifying wiring and commissioning.
The drive delivers THDi of less than 3%, dramatically improving input current quality, reducing energy waste and transformer loading. With built-in low harmonic filtering, you avoid external filters and multi-pulse configurations, cutting installation time and total cost of ownership while supporting compliant operation in energy-efficiency programs.
Yes. The ABB 3AXD50000045383 is designed to control fans, pumps, compressors, air-handling units, and chillers, ensuring smooth operation across normal and mission-critical HVAC scenarios. Features like power factor correction and output voltage boost help maintain performance under varying loads and speeds.
The drive is UL-listed and designed for 400/480 V configurations with a built-in low-harmonic system. It ships in an IP21 enclosure as standard, with IP55 and flange mounting options available for harsher environments. These certifications support compliance with electrical standards while enabling reliable operation in exposed mechanical spaces.
By reducing harmonic distortion, enabling energy-efficient operation, and cutting installation time through built-in components, the ABB HVAC Drive lowers energy bills and maintenance costs. The elimination of external filters and transformers reduces capital expenditure, while remote commissioning via Bluetooth (optional) shortens site visits and accelerates project timelines.
