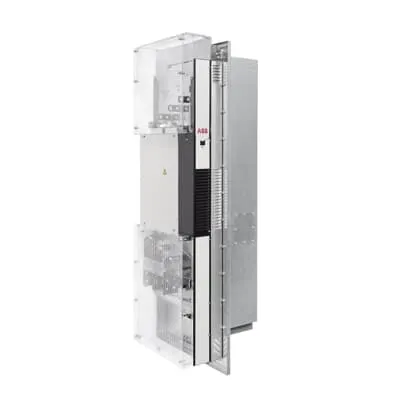

ABB 3AXD50000046000 Drive Module - ACS880-04F-504A-3
Part Number: 3AXD50000046000
Quick Summary
ABB 3AXD50000046000 drive module provides reliable LV AC control for heavy-duty conveyors and processing lines. In compact OEM layouts, space constraints and wiring complexity can hamper uptime and maintenance efficiency, making installation and serviceability a critical decision point. This flange-mounted, push-through design aligns with CE expectations and is typically considered within IP-rated environments, while SIL considerations are addressed through proper configuration and system integration. As part of the ACS880 family, it enables scalable control with predictable performance, reducing spare parts needs and lifetime costs. For engineers and procurement teams, this translates into faster deployment, easier maintenance, and measurable total cost of ownership improvements across mid-to-large industrial applications.
Product Information
Extended Description
3AXD50000046000 ABB: Flange mounting (push through mounting) version of ACS880-04
Feature: Flange-mounted design with push-through mounting. Benefit: Reduces cabinet footprint and simplifies mechanical integration in tight spaces, speeding installation for conveyors and processing lines. Application: New line insertions or retrofit projects where space is at a premium. The business impact is a quicker time-to-production and lower installation costs. Feature: ACS880-04F-504A-3 drive integration. Benefit: Proven control algorithms and robust motor synchronization improve drive stability and efficiency. Application: High-duty cycles on packaging, metals, or material handling where consistent torque is essential. The outcome is reduced energy waste and lower wear on drive components. Feature: 250 kW, 504 A, 400 V rating. Benefit: Suitable for mid-to-high power motors with straightforward electrical integration and scalable performance. Application: Medium- to large-scale conveyors and processing lines seeking predictable ramping and startup behavior. The result is improved line uptime and smoother production flows. Feature: Compact LV AC drive module within the ACS880 platform. Benefit: Simplified spare parts management, familiar maintenance procedures, and streamlined technician training. Application: Global deployments with common service practices. The impact is lower maintenance cost and faster issue resolution. Feature: Industry-standard installation and wiring practices. Benefit: reduces commissioning risk and accelerates qualification for CE-compliant environments. Application: Industrial facilities requiring compliant drive systems. The outcome is safer operations and faster regulatory acceptance.
Get a Quick Quote for a ABB 3AXD50000046000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000046000?
Enquire Now
FAQs
Begin with verifying enclosure clearance and mounting surfaces, then attach the flange-mount plate for a push-through installation. Wire the drive to a 400 V 3-phase supply per the ACS880 wiring diagram, configure parameters for a 250 kW nominal rating and 504 A current, and perform a commissioning sequence per ABB assembly instructions. Ensure all guards and interlocks are in place before powering up.
The module is rated at 250 kW (Pn), with a maximum current of 504 A and a supply voltage of 400 V, categorized as a low-voltage AC drive. It is part of the ACS880-04F-504A-3 family, designed for reliable torque control and smooth acceleration in demanding industrial loads.
Yes. The 3AXD50000046000 drive module integrates with ACS880-04 configurations to provide precise motor control, high torque at startup, and reliable operation for conveyors and processing line applications. Its flange-mounted design simplifies mechanical integration in tight spaces common to material handling and packaging lines.
This solution is designed with CE compliance considerations for European markets and is compatible with standard industrial safety and electrical installation practices. Exact IP ratings and SIL suitability depend on enclosure selection and system configuration; consult ABB installation guides to confirm the applicable certifications for your environment.
Using this ACS880-based drive module standardizes maintenance around a familiar platform, reducing spare parts diversity and technician training time. Benefits include longer motor life due to precise control, reduced downtime from quick commissioning, and a lower total cost of ownership through streamlined service workflows and improved energy efficiency.
