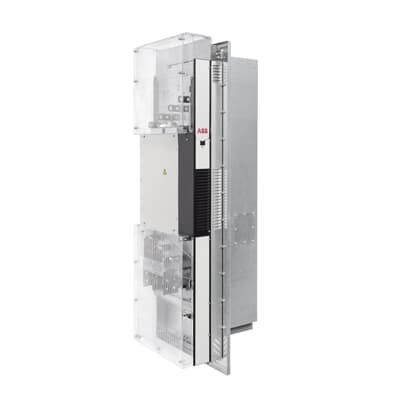

ABB 3AXD50000046011 Drive Module - 315 kW, 584 A, 400 V
Part Number: 3AXD50000046011
Quick Summary
ABB drive module 3AXD50000046011 provides LV AC control for high-power motors in industrial lines. This flange-mounted solution reduces cabinet footprint and simplifies wiring, addressing space constraints and maintenance challenges on crowded shop floors. The design complies with CE conformity, integrates SIL-rated safety logic where configured, and offers IP-rated enclosure protection for demanding environments. With this module, engineers gain precise speed and torque control, smoother startup sequences, and improved energy efficiency across lines such as packaging, material handling, and process automation. By combining compact installation with scalable control capability, it supports faster commissioning, easier service, and lower total cost of ownership for modern manufacturing facilities.
Product Information
Extended Description
3AXD50000046011 ABB: Flange mounting (push through mounting) version of ACS880-04
Feature: Flange-mounted push-through mounting design. Business Impact: Reduces cabinet footprint, minimizes wiring complexity, and speeds up installation. Application: Ideal for compact machine layouts in packaging lines and bottling plants. Feature: High-power LV AC drive capability (315 kW, 584 A at 400 V). Business Impact: Delivers robust torque, reliable soft-start, and improved process control, lowering downtime and energy waste. Application: Heavy conveyors, mixers, and pump systems with demanding load profiles. Feature: ACS880-04F-584A-3 compatibility and control flexibility. Business Impact: Simplifies integration with existing ABB controls and third-party PLCs, enabling seamless modernization projects. Application: New lines or retrofits in manufacturing cells and material handling systems. Feature: Safety and compliance options (CE, SIL-ready, IP enclosure options). Business Impact: Reduces risk, accelerates regulatory approvals, and supports safe operation in harsh environments. Application: Food & beverage packaging, chemical processing, and automated handling. Feature: Installation and maintenance efficiency. Business Impact: Flange mounting and modular design shorten commissioning time and simplify servicing, lowering total cost of ownership. Application: Maintenance-driven environments with frequent upgrades or expansions.
Get a Quick Quote for a ABB 3AXD50000046011
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000046011?
Enquire Now
FAQs
Installation begins with confirming flange-mounted, push-through mounting compatibility and ensuring proper enclosure provisions for the control cabinet. Mount the module per the ACS880-04 family guidelines, connect power and control cables with proper shielding, and integrate the drive into the local control network. Verify protective earth continuity and perform a commissioning sequence to tune motor parameters for the application.
The module is a low-voltage AC drive rated at 315 kW with a current of 584 A at 400 V. It belongs to the ACS880-04 family and provides precise vector control for high-torque startup and efficient steady-state operation. Ensure your motor nameplate matches these values and configure software parameters to optimize performance for your load profile.
Yes. With a 315 kW rating and 584 A current capability at 400 V, the 3AXD50000046011 module delivers strong starting torque and smooth speed regulation ideal for conveyors, pumps, and processing machines. Its flange-mounted design also saves cabinet space and reduces wiring length, improving reliability and installation speed in continuous-operation environments.
The module aligns with CE conformity and supports SIL-ready safety integration where configured, enhancing regulatory compliance for safety-focused applications. Depending on configuration, enclosure protection can be IP-rated to withstand harsh environments. Always verify the specific configuration with your supplier to confirm exact certifications and protective enclosures for your region and industry.
Expect reduced panel footprint, simpler wiring, and faster commissioning, which translates to lower installation labor and space costs. With reliable ABB control algorithms and scalable integration, you gain improved energy efficiency, lower downtime, and faster time-to-value on lines like packaging and material handling. Regular software updates and preventive maintenance further extend motor life and reduce total cost of ownership.
