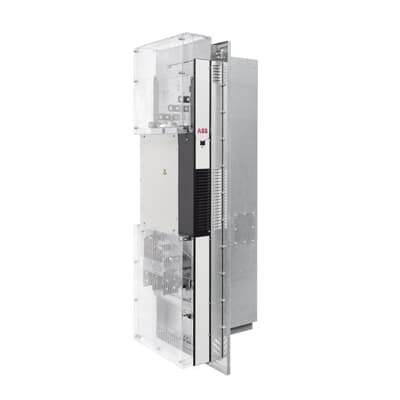

ABB 3AXD50000046016 Drive Module - ACS880-04F-502A-5
Part Number: 3AXD50000046016
Quick Summary
ABB 3AXD50000046016 is a LV AC industrial flange-mounted drive module for controlling high-power motors in automated production lines. Tight spaces and wiring complexity are common challenges, and this unit simplifies installation with push-through mounting and integrated electronics. It aligns with IEC drive ratings and UL-listed performance, delivering 355 kW / 502 A / 500 V and 400 Hp / 483 A / 480 V. The compact, scalable design reduces panel depth and enables easier commissioning within existing ABB ACS880 families. For packaging, conveyors, pumps, and fans, this solution offers reliable motor control with improved energy efficiency and a clear path to lower total cost of ownership.
Product Information
Extended Description
3AXD50000046016 ABB: Flange mounting (push through mounting) version of ACS880-04
Flange mounting (push-through) design enables compact installation and simplified cabinet layouts, dramatically reducing enclosure footprint. The integrated drive electronics means less external wiring and faster commissioning on crowded machines. In practice, packaging lines and conveyors benefit from easier wiring routing and simpler maintenance access. Powerfully performing at 355 kW / 502 A / 500 V (IEC) and UL 400 Hp / 483 A / 480 V, the module delivers strong starting torque and precise speed control for heavy loads like pumps, fans, and material handling equipment, while meeting energy efficiency targets. The single drive module integration reduces wiring complexity and BOM size, lowering installation time and total cost of ownership. Compatibility with the ACS880-04 family enables straightforward migration and scalable control across plant assets. Industry users gain predictable reliability with robust protection and streamlined commissioning workflows, supporting longer equipment life and lower downtime.
Get a Quick Quote for a ABB 3AXD50000046016
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000046016?
Enquire Now
FAQs
Flange-mounted installation requires adequate clearance for the through-mount and wiring, plus proper shaft alignment with the motor. The 3AXD50000046016 variant aligns with the ACS880-04F-502A-5 and supports 500 V operation at 502 A. Plan for proper cooling, cable routing, and a suitable control panel to maintain reliability in tight spaces.
Key specs are IEC 355 kW, 502 A, 500 V and UL 400 Hp, 483 A, 480 V. This drives motor sizes in the high-power range, providing strong starting torque and smooth speed control for heavy loads such as pumps and conveyors. Always verify motor nameplate matches both voltage and current ratings and consider derating in high-temperature environments.
Ideal for packaging lines, conveyors, pumps, and fans in manufacturing and process industries where compact installation and precise motor control are critical. The flange-mounted ACS880-04F-502A-5 variant supports tight machine footprints and scalable control across multiple line assets, enabling standardized drive architecture in automotive, food & beverage, and material handling facilities.
Standards include IEC drive performance and UL listing for industrial control panel use. The product is a flange-mounted ACS880 derivative designed to meet typical safety and performance requirements for low-voltage industrial drives. For global deployment, confirm local CE/IP expectations with your integrator, referencing IEC and UL specifications provided in the datasheet.
ROI is driven by reduced cabinet footprint, simplified wiring, and energy-efficient motor control. Maintenance benefits include fewer external components and easier access to the drive module for diagnostics. The ACS880 family provides spare-part compatibility and streamlined service pathways, helping minimize downtime and extend motor life through standardized maintenance procedures.
