ABB 3AXD50000046020 Motors & Drives - ACS880-04F-820A-5
Part Number: 3AXD50000046020
Quick Summary
ABB 3AXD50000046020 is a flange-mounted LV AC drive module designed to control high-power motors in industrial automation applications. While delivering robust torque and smooth speed control, it addresses common installation pain points such as cabinet space, wiring complexity, and retrofit risk. This variant carries UL listing for 480 V configurations and IEC-based mounting compatibility, signaling safe operation in North American and global plants. Built to integrate with ABB's ACS880 family, it provides scalable performance for conveyors, pumps, and processing lines, while reducing installation time and total cost of ownership. Engineers also benefit from clear serviceability and long-term support within a unified drive portfolio.
Product Information
Extended Description

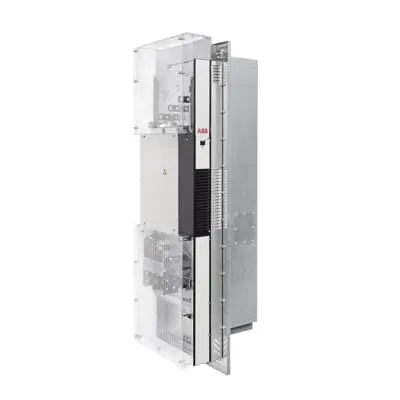

3AXD50000046020 ABB: Flange mounting (push through mounting) version of ACS880-04
Flange-mounted LV AC drive module with push-through mounting reduces cabinet depth and simplifies wiring, delivering a rugged solution for space-constrained control panels. The business impact is faster deployment and easier maintenance in compact enclosures. This configuration is ideal for conveyors, packaging lines, and other high-current applications in tight spaces. The high power rating (Pn 560 kW, 820 A, 500 V) enables precise torque control and improved process stability, translating to higher throughput and energy efficiency across industrial processes. It also supports seamless integration with the ACS880-04F-820A-5 variant, providing a common form factor for retrofit projects and new installations alike. UL listing for 700 Hp, 807 A, 480 V confirms safety compliance, accelerating procurement and reducing risk in North American facilities. The drive’s standard interfaces and protection features simplify PLC integration, lowering commissioning time and enabling reliable operation in demanding environments. With robust construction and ABB service support, users gain lower maintenance costs and longer equipment uptime in continuous manufacturing settings.
Get a Quick Quote for a ABB 3AXD50000046020
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000046020?
Enquire Now
FAQs
Install the flange-mounted drive in a suitable enclosure using push-through mounting to maximize cabinet space. Connect 500 V power supply or 480 V via the UL-rated configuration, secure proper grounding, and follow ABB installation guidelines. Verify mechanical alignment, cable routing, and protective interlocks to ensure safe startup and reliable operation.
The unit is rated at PN 560 kW with 820 A current at 500 V, paired with the UL-listed 480 V configuration of the ACS880-04F-820A-5 variant. These ratings support high-torque motor control for large drives while meeting essential safety and performance standards.
Yes. The 3AXD50000046020, as a flange-mounted LV AC drive module, is designed for high-power motors used in conveyors and pumps. Its ACS880 family heritage provides smooth speed control, robust protection, and scalable performance across continuous material handling and fluid transfer applications.
The module carries UL listing for 480 V configurations and is designed to IEC-based mounting support. These certifications ensure electrical safety, reliable operation in North American facilities, and broad compatibility with standard industrial control panels.
The drive offers energy-efficient motor control, reduced startup times, and fewer runtime faults due to robust ABB design. These factors translate to lower energy costs, minimized downtime, and a faster payback in manufacturing environments with heavy-duty motor loads.
