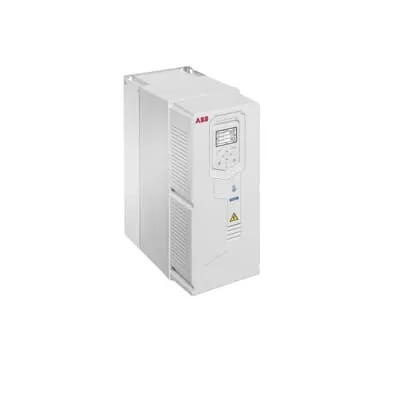

ABB ACH580 HVAC Drive - Ultra-Low THDi - IP21
Part Number: 3AXD50000046648
Quick Summary
ACH580 HVAC drive is an ultra-low harmonic, variable-speed solution designed to control fans, pumps, and compressors in modern commercial and industrial HVAC systems. It addresses common pain points such as harmonic distortion, bulky external filters, and lengthy commissioning by offering an integrated, compact solution. With CE-certified enclosure, UL-listed safety, and IP21 standard protection (IP55 option available), the drive meets typical regulatory and protection requirements for indoor equipment. The built-in line filter, voltage boost, and power-factor correction support energy efficiency goals, while the wall-mount design saves cabinet space and accelerates installation for retrofit projects and new builds alike.
Product Information
Extended Description
3AXD50000046648 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. This ultra-low variant provides ultimate harmonic performance, reaching even less than 3 % THDi, and exceeding the requirements set by low harmonic recommendations.
The drive includes an active supply unit and integrated low harmonic line filter, meaning there is no need for external filters, multi-pulse arrangements or special transformers. Other features include output voltage boost and power factor correction. The built-in features significantly reduce installation time, and the intuitive HVAC specific control panel and help assistants make operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.
Feature → Business Impact → Application: Ultra-low harmonic performance with THDi below 3% and an integrated low harmonic line filter reduces grid distortion and compliance risk, cutting the need for external filters and complex harmonic mitigation. This translates to smaller enclosures, simpler installation, and lower total cost of ownership for HVAC projects such as air-handling units and chilled water systems. Feature → Business Impact → Application: Integrated active supply unit and built-in power-factor correction simplify electrical design, shorten installation time, and improve overall energy efficiency in large-scale fan and pump applications. This is particularly beneficial when retrofitting existing HVAC controls or deploying in tight mechanical rooms where space is at a premium. Feature → Business Impact → Application: Output voltage boost and PF correction optimize motor performance, enabling smoother startup, reduced electricity demand charges, and better alignment with building power quality standards in air-handling networks and commercial chillers. Feature → Business Impact → Application: HVAC-specific control panel with intuitive guidance and optional Bluetooth enables rapid commissioning, remote monitoring, and proactive maintenance, reducing on-site labor and enabling facilities teams to manage systems from a centralized building management platform. Feature → Business Impact → Application: Flexible enclosure options (IP21 standard, IP55 on request, wall-mount or flange mounting) provide installation versatility across HVAC rooms, rooftops, and plant spaces, delivering robust protection in varying environments and easing integration with existing electrical infrastructure.
Get a Quick Quote for a ABB 3AXD50000046648
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000046648?
Enquire Now
FAQs
Yes. The ACH580 is designed for wall-mounted installation with an IP21 standard enclosure and optional IP55. It supports HVAC-focused applications such as fans, pumps, and compressors, and integrates with existing electrical infrastructure to minimize cabinet size and wiring complexity.
The drive delivers ultra-low harmonic performance with THDi below 3%, aided by an integrated low harmonic line filter and active supply unit. This reduces grid distortion, improves power quality, and decreases the need for external harmonic mitigation equipment in motors driving HVAC components.
Absolutely. The ACH580 is purpose-built for HVAC applications, including fans, pumps, and compressors found in AHUs and chillers. Its compact, wall-mount form factor and built-in features streamline control of these loads, delivering energy savings and smoother operation.
The drive carries CE certification and UL listing, with IP21 protection standard and IP55 option available. These ratings ensure safe indoor operation, permit compliant installations in commercial HVAC environments, and support regulatory requirements for equipment modernization projects.
ROI is driven by reduced energy consumption from improved PF and motor efficiency, simplified installation through integrated features, and faster commissioning with HVAC-focused controls. In many projects, customers realize shorter project timelines and lower total installed cost due to eliminating external filters and streamlining wiring.
