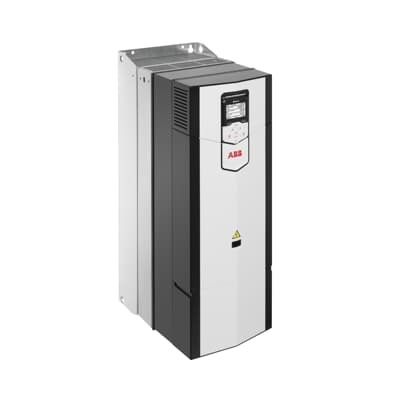

ABB 3AXD50000047496 ACS880-11 drive - 22 kW Regenerative, 400 V
Part Number: 3AXD50000047496
Quick Summary
ABB 3AXD50000047496 is a regenerative LV AC drive for industrial machines in process and material handling. Traditional drives waste braking energy and increase cooling demands, driving higher operating costs. This drive family supports CE compliance and offers SIL-ready safety configurations along with IP-rated enclosure options to fit diverse plant standards. With a unity power factor, integrated low harmonic line filter, and an active supply unit, it delivers energy efficiency and dependable performance. In practice, ABB ACS880-11 drives enable energy recovery for cranes, conveyors, pumps, and fans, delivering faster payback and smoother operation across demanding sectors.
Product Information
Extended Description
3AXD50000047496 ABB: The ACS880-11 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps and fans. The ACS880-11 is a compact and complete regenerative drive solution with everything you need for regenerative operation in cyclic or continuous braking applications.
With regenerative functionality, the braking energy of the motor is returned to the drive and distributed to the supply network so that it can be utilized by other equipment. With mechanical or resistor braking energy is wasted as heat and additional cooling is often required, whereas regenerative drive operation offers significant savings in energy consumption and cooling. The drive reaches a unity power factor, meaning that electrical energy is used to its full potential. Equipped with an active supply unit and integrated low harmonic line filter, the regenerative drive produces exceptionally low harmonic content.
Feature: Regenerative braking returns energy to the electrical network, reducing grid demand and cooling load. Business Impact: lowers energy costs, reduces thermal load, and extends motor life during frequent braking cycles. Application: conveyors and winches in material handling, plus heavy-duty cranes. Feature: Unity power factor and integrated low harmonic line filter improve power quality and compliance with utility standards. Business Impact: simplifies electrical design, reduces utility penalties, and enables stable operation in tight electrical environments. Application: continuous-process plants and batch lines with multiple drives. Feature: Active supply unit and compact wall-mounted design streamline installation and service. Business Impact: minimizes control panel footprint, speeds commissioning, and simplifies retrofits in space-constrained facilities. Application: retrofits in existing plants and new installations with tight MCC rooms. Feature: Broad motor control capability for cranes, conveyors, pumps, fans, mixers, and winders. Business Impact: lowers procurement costs by supporting multiple applications on a single drive family; improves uptime with consistent control behavior. Application: mining, metals, cement, and chemical processing. Feature: 22 kW, 45 A, 400 V specification with robust diagnostics and compatibility with ABB drives. Business Impact: straightforward integration with existing 3-phase motors, faster commissioning, and reduced spare parts inventory. Application: industrial automation projects requiring reliable regenerative performance. Feature: Industry-ready reliability and energy efficiency advantages. Business Impact: reduces maintenance intervals through built-in diagnostics and lowers total cost of ownership in energy-intensive cycles. Application: heavy-duty material handling, pumps, and fans in oil & gas, power plants, and wastewater facilities.
Get a Quick Quote for a ABB 3AXD50000047496
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000047496?
Enquire Now
FAQs
The ACS880-11 regenerative drive is designed for 400 V three-phase networks and 22 kW motors. It fits standard industrial control panels, supports common wiring practices, and leverages an integrated active supply unit to simplify commissioning. For retrofit projects, verify panel clearance, wiring routes, and motor protection settings to ensure seamless integration with existing MCC and downstream drives.
Regenerative capability is defined by the drive’s ability to return braking energy to the supply network via the DC bus and DC link, aided by the integrated low harmonic filter. Key specs include 22 kW power, 45 A current, and 400 V input. This configuration supports energy recovery during braking, improving overall efficiency and reducing cooling loads.
Yes. The ACS880-11 regenerative drive is engineered for applications like cranes, conveyors, pumps, and fans. Its regenerative braking and high-torque control enable smooth startup/shutdown, precise speed regulation, and energy recovery during braking cycles, which improves throughput and reduces wear on mechanical components in demanding industrial environments.
ABB typically provides CE-compliant configurations for European markets and offers SIL-ready safety options plus IP-rated enclosure variants to suit harsh environments. For your exact installation, confirm the specific certification package with ABB or your distributor, and ensure your system wiring and safety interlocks meet local regulations and plant standards.
Regenerative drives reduce energy consumption by returning braking energy to the grid, lowering cooling requirements and improving motor efficiency. They also simplify maintenance with integrated diagnostics and reduce peak demand charges. In conveyors, cranes, and pumps, payback commonly occurs through energy savings, reduced heat load, and extended equipment life.
