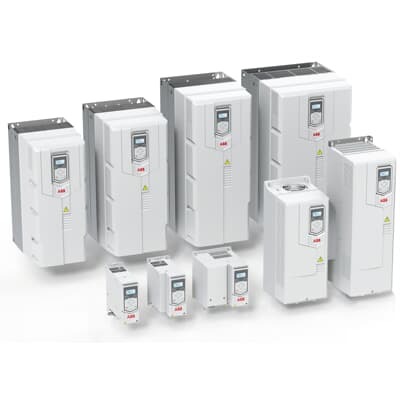

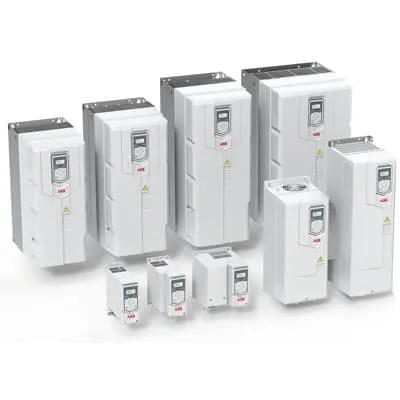

ABB 3AXD50000047656 Motors & Drives - ACS560-01-145A-4
Part Number: 3AXD50000047656
Quick Summary
3AXD50000047656 enables precise motor drive control for industrial automation applications. Engineers often wrestle with abrupt starts, energy waste, and complex integration with existing PLCs. Typical ABB drives carry CE marking and are designed to meet EMC and safety standards, with many configurations offering SIL-rated protection and IP-rated enclosures depending on the setup. This model combines a compact form factor with robust control capabilities, delivering predictable performance and lower lifecycle costs for pumps, fans, and conveyors. By leveraging the ACS560-01-145A-4 variant, teams can simplify commissioning, reduce wiring complexity, and achieve consistent motor performance across harsh factory environments.
Product Information
Feature: 145 A nominal current rating enables direct drive of mid-size motors, reducing the need for external soft starters. Business Impact: lowers BOM and wiring complexity, shortens commissioning time, and improves line uptime. Application: mid-range pumps and belt conveyors benefit from simplified integration and reduced footprint. Paragraph 2: Feature: Compact design and standard enclosure compatibility. Business Impact: saves cabinet space, eases retrofits, and accelerates installation in existing lines. Application: plant floors with space constraints and modular automation architectures. Paragraph 3: Feature: Precise speed and torque control with robust protection. Business Impact: improves process stability, reduces mechanical wear, and lowers replacement costs. Application: dosing, batching, and material handling. Paragraph 4: Feature: Built-in diagnostics and remote monitoring capabilities. Business Impact: enables predictive maintenance, faster fault isolation, and reduced maintenance windows. Application: energy-intensive processes requiring high availability. Paragraph 5: Feature: Energy efficiency and soft-start behavior across loads. Business Impact: lowers energy consumption, reduces peak demand, and shortens payback periods. Application: continuous processes like pumping and conveying with varying load.
Get a Quick Quote for a ABB 3AXD50000047656
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000047656?
Enquire Now
FAQs
For reliable installation, mount the drive in a ventilated enclosure, connect to a suitable three-phase supply, and wire the motor with shielded cables. Use standard DIN rail or cabinet mounting common to ACS560 family and follow ABB installation guidelines to ensure EMI compliance. Verify that the motor current matches the 145 A nominal rating and configure safeguarding as required.
The drive provides precise speed and torque control with smooth start-stop, which reduces mechanical stress on belts and pumps. The 145 A nominal rating supports mid-size motors, improving process stability and reducing motor wear. Its integration with ABB control ecosystems simplifies commissioning and long-term maintenance for continuous-duty applications.
ABB ACS560 drives commonly support CE compliance and EMC safety standards; verify the exact certification by checking the product datasheet and purchase documentation for your specific configuration. For SIL or IP-related requirements, review the installation manual and configuration options to confirm availability for your plant safety and enclosure needs.
Customers often ask about fieldbus compatibility, I/O wiring, and PLC integration. The ACS560 family supports multiple control interfaces and has configurable protection profiles. To minimize integration issues, confirm the PLC’s supported protocols, signal levels, and whether you need built-in safety features or external interlocks for your application.
Expect a relatively quick payback from energy savings due to soft-start and efficient motor control, plus reduced maintenance from fewer external soft starters and comprehensive protection. Remote diagnostics and built-in fault detection help minimize downtime, while easier commissioning shortens project timelines and lowers total cost of ownership.
