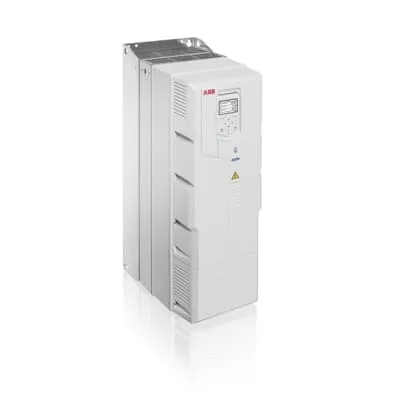

ABB ACH580-31-039A-4 HVAC Drive - Ultra-low Harmonic
Part Number: 3AXD50000047699
Quick Summary
ACH580 HVAC drive controls fans, pumps and compressors in HVAC systems for energy-efficient operation. In many installations, harmonics and wiring complexity degrade efficiency and reliability; this ultra-low harmonic variant minimizes THDi and streamlines integration with common building automation platforms. It delivers UL-listed safety and rugged enclosure options, with IP21 standard and IP55 on request, making it suitable for wall-mounted or protected installations in commercial and industrial environments. The drive includes an active supply unit and integrated low harmonic line filter, eliminating the need for external filters and multi-pulse arrangements. With features like output voltage boost, power factor correction, and optional Bluetooth commissioning, it reduces installation time and supports proactive maintenance while boosting overall energy efficiency.
Product Information
Extended Description
3AXD50000047699 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. This ultra-low variant provides ultimate harmonic performance, reaching even less than 3 % THDi, and exceeding the requirements set by low harmonic recommendations.
The drive includes an active supply unit and integrated low harmonic line filter, meaning there is no need for external filters, multi-pulse arrangements or special transformers. Other features include output voltage boost and power factor correction. The built-in features significantly reduce installation time, and the intuitive HVAC specific control panel and help assistants make operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.
Ultra-low harmonic design → Improves power quality and reliability → Ideal for HVAC systems that run variable-speed fans, pumps and compressors.The built-in active supply unit and integrated low harmonic line filter → Eliminates external filters and complex wiring → Speeds up installation, reduces cabinet space, and lowers capital costs.Output voltage boost and power factor correction → Enhances motor performance and energy efficiency under varying loads → Supports compliant operation with building power systems and reduces energy waste in chilled-water plants.Bluetooth commissioning option → Enables remote setup, monitoring and troubleshooting → Improves serviceability and reduces on-site labor during commissioning and maintenance cycles.Wall-mounted IP21 enclosure as standard with IP55 and flange options → Flexible installation in space-constrained mechanical rooms or outdoor-rated areas → Provides robust protection and adaptability for a range of HVAC layouts.Integrated features and compact packaging → Shortens engineering time and simplifies integration with fans, pumps, chillers and air-handling units → Lowers total cost of ownership through easier maintenance and faster deployments.
