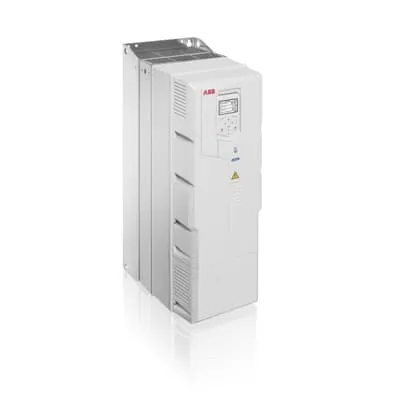

ABB ACH580-31-073A-4 HVAC Drive - Ultra-Low Harmonics
Part Number: 3AXD50000047700
Quick Summary
The ABB ACH580-31-073A-4 HVAC drive is a wall-mounted LV drive for energy-efficient HVAC fans, pumps, and compressors. Too many HVAC installations battle harmonic distortion, external filter clutter, and long commissioning cycles that erode uptime and drive costs. This model delivers UL-listed safety with a 50 Hp rating at 480 V and IP21 enclosure, with optional IP55 and flange mounting for tougher environments. Built-in features such as a low harmonic line filter, output voltage boost, and power factor correction streamline start-up and system regulation. The optional Bluetooth capability supports remote commissioning and monitoring, while the intuitive HVAC-specific control panel reduces operator training time and helps ensure stable operation in mission-critical applications. In practice, this translates to lower total cost of ownership and more reliable building performance.
Product Information
Extended Description
3AXD50000047700 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. This ultra-low variant provides ultimate harmonic performance, reaching even less than 3 % THDi, and exceeding the requirements set by low harmonic recommendations.
The drive includes an active supply unit and integrated low harmonic line filter, meaning there is no need for external filters, multi-pulse arrangements or special transformers. Other features include output voltage boost and power factor correction. The built-in features significantly reduce installation time, and the intuitive HVAC specific control panel and help assistants make operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.
Feature: Built-in low harmonic line filter and integrated active supply unit. Business impact: Eliminates the need for external filters and multi-pulse transformers, reducing installation time and parts cost. Application: HVAC systems with fans and pumps where harmonic distortion is a concern. Feature: Output voltage boost and power factor correction. Business impact: Improves motor efficiency and reduces electrical losses, supporting better energy management in large air handling units. Application: Commercial buildings and data centers with variable speed drives in ventilation and chilled water systems. Feature: IP21 enclosure with wall-mount capability; optional IP55 and flange mounting. Business impact: Expands installation options and resilience in varied indoor environments, enabling quick retrofits. Application: Mechanical rooms, roof-top units, and compact plant rooms. Feature: HVAC-specific control panel and availability of Bluetooth for commissioning. Business impact: Simplifies setup, reduces training time, and enables remote monitoring, lowering maintenance visits. Application: Multi-site facilities and new builds needing rapid deployment and centralized control.
Get a Quick Quote for a ABB 3AXD50000047700
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000047700?
Enquire Now
FAQs
For best results, plan a wall-mounted installation using the IP21 enclosure as standard, ensuring access to the HVAC-specific control panel. The drive includes an integrated low harmonic line filter and an active supply unit, reducing the need for external components. Use the 400 V supply with a 37 kW rating and 73 A current, with optional IP55 or flange mounting for tougher environments.
THDi below 3% significantly improves power quality, reduces electrical stress on upstream equipment, and lowers the risk of nuisance trips. The built-in filtering eliminates the need for external filters or multi-pulse transformers, cutting installation complexity and costs. This is especially valuable in large air handling units, chillers, and variable-air-volume systems.
Yes. The standard IP21 enclosure supports wall mounting in typical indoor mechanical rooms. IP55 and flange-mount options extend compatibility to harsher environments. Its HVAC-focused control panel and compact footprint simplify retrofits in rooftop units, mechanical rooms, or compact plant spaces while maintaining reliable operation.
This model is UL-listed for safety with a 50 Hp rating at 480 V and uses an IP21 enclosure by default, with IP55 optional. Its architecture supports low-harmonic operation and reduces external components, aiding regulatory compliance and smoother approvals in modern HVAC modernization projects.
By eliminating external filters, reducing harmonic distortion, and enabling built-in power factor correction, the drive lowers energy consumption and maintenance costs. The integrated features shorten commissioning time, while optional Bluetooth enables remote monitoring, reducing site visits. For multi-branch HVAC systems, this typically yields faster payback and improved system reliability.
