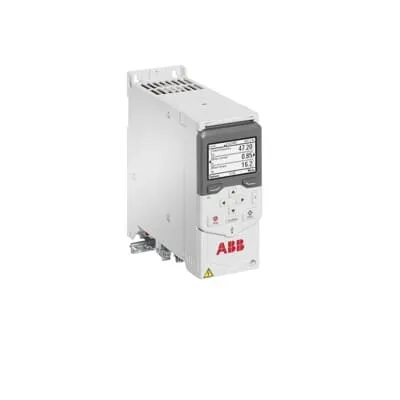

ABB 3AXD50000047766 Drive Module - 1.1 kW, 400 V
Part Number: 3AXD50000047766
Quick Summary
ABB ACS480 drive is a compact LV AC speed-control solution for general-purpose motor control across compressors, fans, and conveyors. Engineers often confront lengthy setup, difficult parameterization, and integration hassles with legacy drives. Typical certifications to confirm include CE compliance and robust IP protection; SIL capabilities depend on configuration. This model emphasizes built-in setup assistants and a cabinet-optimized design, delivering faster commissioning and lower total cost of ownership. For broader reach and compatibility, this ABB solution pairs well with standard PLCs and motor control strategies in food and beverage, logistics, water and agriculture sectors.
Product Information
Extended Description
3AXD50000047766 ABB: The ACS480 is a ready-made and capable package for many applications, such as compressors, fan and conveyors, in a variety of light industries, including food and beverage, logistics and warehousing, water and wastewater, and agriculture.
It has all essential features built-in as standard, simplifying drive selection, and making additional hardware unnecessary. Straightforward settings menu and assistants enable fast setup, commissioning, use and maintenance. It=E2=80=99s a great fit for variable torque and basic speed applications, where you can leverage a compact, cabinet-optimized design for a cost-effective and efficient solution.
Feature: Built-in setup assistants simplify commissioning. Business Impact: Reduces engineering time, minimizes error-prone parameter tuning, and lowers spare parts needs. Application: Light-industrial lines in packaging, material handling, and process sequencing. Feature: Cabinet-optimized compact design. Business Impact: Saves enclosure space, reduces wiring complexity, and accelerates panel fabrication. Application: Integrated drives within tight control cabinets in warehouses and production lines. Feature: 1.1 kW, 400 V, 3.3 A rating. Business Impact: Delivers appropriate capacity for small to mid-size motors, enabling reliable speed control and predictable motor performance. Application: Conveyors, fans, and small compressors in food & beverage and logistics. Feature: Variable torque and basic speed control. Business Impact: Improves energy efficiency and process control during load fluctuations, lowering operating costs. Application: Fans, pumps, and compressors with varying load profiles. Feature: PLC-friendly integration and standard wiring. Business Impact: Quick software integration, faster project delivery, and seamless automation with existing PLCs. Application: Automated lines in manufacturing facilities. Feature: Built-in protection and diagnostics. Business Impact: Reduces downtime with pre-emptive fault detection and straightforward maintenance planning. Application: Critical processes in water/wastewater and agriculture.
Get a Quick Quote for a ABB 3AXD50000047766
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000047766?
Enquire Now
FAQs
This ABB drive is a low-voltage AC drive module designed for 400 V three-phase motors up to 1.1 kW. Connect per enclosure and wiring diagrams, ensure the supply matches 3-phase 400 V, and configure parameter sets through the built-in setup assistant. Verify motor nameplate ratings and ensure safe, compliant enclosure installation.
Key specs include a 1.1 kW rated power, 3.3 A current, and a 400 V input. It supports variable torque and basic speed control, with built-in setup software and a cabinet-optimized design. For performance, confirm motor compatibility, ensure proper motor protection features, and plan for energy-efficient operation in light-industrial applications.
Yes. The ACS480 module is well-suited for light-industrial applications like compressors, fans, and conveyors. Its built-in setup assistants speed commissioning, and the compact design helps in panel space-constrained environments. Use variable torque control to optimize energy use and align with varied production and handling cycles in food & beverage and logistics settings.
Certification details for this specific part are not listed in the provided data. Typical ABB ACS480 solutions often carry CE compliance and standard IP protection depending on configuration. Always consult the product datasheet or ABB support to confirm SIL, IP ratings, and regional regulatory requirements for your installation.
By integrating built-in setup, diagnostics, and a cabinet-optimized design, maintenance intervals shorten and commissioning time reduces, lowering total owning cost. Energy-efficient speed control reduces motor load during variable-torque operations, delivering measurable energy savings across conveyors and fans. Expect lower spare parts spend due to fewer external accessories and simpler overall maintenance.
