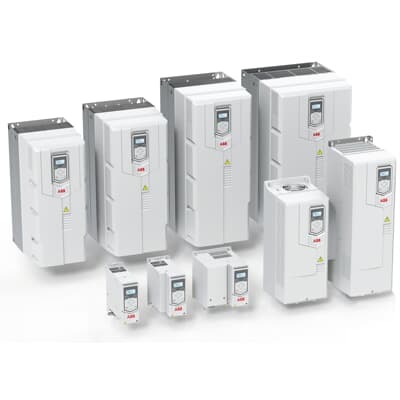

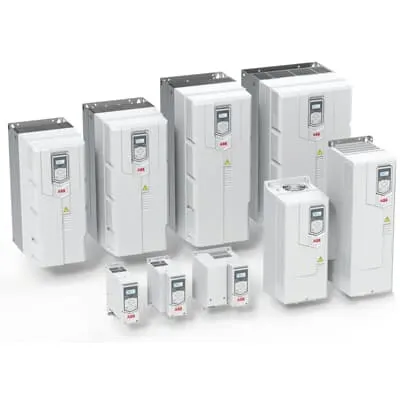

ABB 3AXD50000048376 Drive - ACS560-01-246A-4
Part Number: 3AXD50000048376
Quick Summary
ABB ACS560 drive delivers precise motor control for small to mid-size automation applications. Operators and engineers often grapple with startup surges, energy waste, and lengthy commissioning when integrating new drives. This solution aligns with CE compliance, SIL-rated safety concepts, and protective enclosure practices, helping teams meet regulatory requirements while maintaining uptime. By delivering robust performance with straightforward integration, it supports cost-effective modernization of existing lines and scalable machine architectures, enabling OEMs and maintenance teams to reduce energy bills and boost throughput. It also simplifies procurement with plug-and-play fieldbus options and optional braking integration.
Product Information
Compact, integration-friendly design reduces panel footprint and speeds installation, enabling faster time-to-production in line upgrades and machine refresh projects. This architecture supports applications such as conveyors, pumps, and fans in manufacturing environments. Sensorless vector control provides precise torque and speed regulation, improving process stability and allowing smoother starts and stops in high-throughput lines. Fieldbus compatibility and configurable communications simplify PLC integration, reduce wiring complexity, and enable remote monitoring for proactive maintenance. Integrated safety concepts, diagnostic capabilities, and overload protection minimize unplanned downtime and safeguard operators in demanding environments. Energy-efficient operation with soft-start and controlled acceleration lowers peak demand, delivering measurable cost savings over the equipment lifecycle. Compatibility with ABB motors and the broader ACS drive family ensures a future-proof upgrade path and simplified spares management.
Get a Quick Quote for a ABB 3AXD50000048376
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000048376?
Enquire Now
FAQs
The ACS560-01-246A-4 supports a wide range of standard three-phase AC motors, typically aligned with the drive’s voltage and current ratings. For reliable compatibility, verify motor nameplate data, supply voltage, and encoder options. In practice, pairing with ABB motors or third-party motors that match the drive’s electrical specifications yields the best results.
Begin with proper mechanical mounting and power connections, then connect the drive to the PLC or HMI via the selected fieldbus. Use the built‑in commissioning wizard to set motor parameters, acceleration/deceleration, and safety options. Validate with a test run at low speed, monitor current draw, and adjust torque reference to avoid belt slip and stalls.
Yes, the ACS560-01-246A-4 adheres to CE safety and EMC standards. It offers essential safety features such as overload protection, fault diagnostics, and Safe Torque Off options where permitted by the configuration. For critical safety applications, integrate with a compliant control system and follow applicable standards and plant safety procedures.
The ACS560 family reduces maintenance cycles through robust design and advanced diagnostics that flag faults before they cause downtime. Energy efficiency and smooth motor operation lower operating costs, while longer motor life reduces replacement spend. A typical upgrade can shorten commissioning time, boost line throughput, and improve overall equipment effectiveness (OEE) in automation environments.
Common challenges include space constraints, wiring complexity, and fieldbus integration. The compact form factor minimizes enclosure footprint, while built-in fieldbus interfaces simplify communications with PLCs. Clear parameter libraries and diagnostic feedback accelerate setup, reduce wiring errors, and support scalable upgrades across multiple machines in an line or plant.
