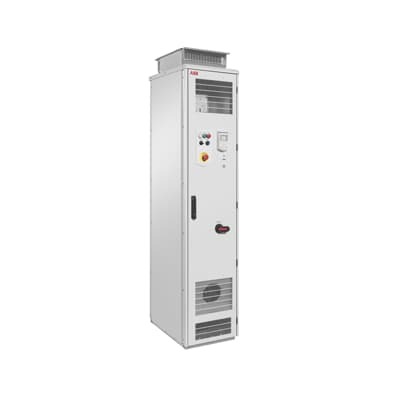

ABB 3AXD50000049019 ACH580 HVAC Drive - IP21 Cabinet
Part Number: 3AXD50000049019
Quick Summary
ACH580 HVAC drive is a cabinet-built LV AC drive designed to control fans, pumps, and compressors in HVAC systems. Installation bottlenecks and complex commissioning can derail projects, especially in retrofit scenarios where downtime is costly. The unit ships standard with IP21 protection, with IP42 and IP54 options, and IEC and UL performance specs including 75 kW at 400 V and 100 Hp at 480 V, ensuring robust operation in demanding environments. Bluetooth-enabled commissioning and monitoring, along with built-in HVAC control features, streamline startup and ongoing operation. This combination delivers dependable, energy-efficient control for commercial and industrial HVAC, while simplifying procurement, installation, and service.
Product Information
Extended Description
3AXD50000049019 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time, and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ready-made standalone cabinet-built ACH580-07 variant comes in IP21 as standard. Also, IP42 and IP54 units are available.
Feature built-in HVAC control functions simplify startup and improve control loops, delivering faster commissioning and more stable operation for fans, pumps, and compressors; Business Impact reduced installation time and lower risk during tuning, enabling quicker system handover and predictable performance in data centers and office buildings; Application ideal for HVAC fans, pumps, and air handling units requiring precise speed and temperature management. Feature IP rated protection with IP21 standard and optional IP42/IP54 variants provides rugged reliability in cabinet environments; Business Impact minimizes field rework and enclosure-related failures, improving uptime for commercial installations; Application suitable for outdoor or exposed equipment where higher protection is necessary. Feature Bluetooth-enabled commissioning and monitoring reduces on-site visits, enabling remote diagnostics and faster turnover; Business Impact lowers maintenance costs and downtime, supporting service contracts and energy management programs; Application beneficial for remote or multi-site HVAC deployments. Feature IEC performance up to 75 kW (145 A, 400 V) and UL-compatible up to 100 Hp (124 A, 480 V) ensures broad compatibility with modern HVAC motors; Business Impact supports standardization across multi-brand fleets and simplifies procurement; Application aligns with large-scale HVAC systems in commercial buildings and light industrial plants. Feature Cabinet-built ACH580-07 variant offers ready-to-install control in a compact footprint; Business Impact accelerates project timelines and reduces on-site assembly risk; Application ideal for modular chiller plants and air-handling units where quick deployment matters.
Get a Quick Quote for a ABB 3AXD50000049019
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000049019?
Enquire Now
FAQs
The ACH580 HVAC drive is designed to control fans, pumps, and compressors in HVAC systems, offering IEC 75 kW (145 A, 400 V) and UL compatibility for up to 100 Hp (124 A, 480 V). Its HVAC-specific control logic supports air handling units and chillers, providing precise speed regulation and energy-efficient operation across conventional and retrofit installations.
Key specs include a 75 kW IEC rating with 145 A at 400 V, and a UL-listed 100 Hp version at 480 V with 124 A. The device ships in an IP21 enclosure, with IP42/IP54 options available, ensuring appropriate protection for cabinet installations and exposed environments.
Yes. The ACH580 offers optional Bluetooth capability for commissioning and monitoring from a distance, reducing on-site visits and enabling quicker start-up, fault diagnosis, and ongoing performance tracking without compromising safety.
The standard IP21 rating covers normal indoor cabinets, while IP42 and IP54 variants provide enhanced protection for environments with greater dust or moisture exposure. These options support reliable operation in data centers, mechanical rooms, and exposed equipment areas.
The ACH580 enables energy-efficient motor control, faster commissioning, and remote diagnostics, which translate to lower lifecycle costs, reduced downtime, and improved maintenance planning. Its cabinet-built design also shortens deployment time for projects and OEM integrations in commercial HVAC systems.
