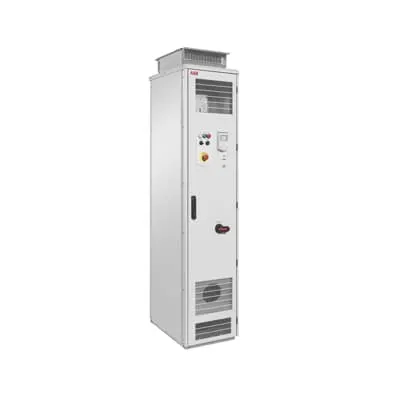

ABB 3AXD50000049020 Motors & Drives - IP21 Cabinet-Built ACH580 HVAC Drive
Part Number: 3AXD50000049020
Quick Summary
ABB ACH580 HVAC drive is a cabinet-built variable-speed drive for HVAC fans, pumps, and compressors. Installing and commissioning separate control hardware can be time-consuming and prone to misconfiguration, leading to project delays and startup risk. It’s UL-listed with IP21 protection as standard, and IP42/IP54 options are available to meet tougher environments, supporting diverse installation sites. By consolidating drive and control functions into a single cabinet, this solution reduces on-site wiring, simplifies commissioning, and accelerates maintenance routines. The built-in HVAC control logic and an intuitive panel enable quicker startup, while energy-efficient operation helps lower operating costs and carbon footprint for commercial and industrial facilities.
Product Information
Extended Description
3AXD50000049020 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time, and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ready-made standalone cabinet-built ACH580-07 variant comes in IP21 as standard. Also, IP42 and IP54 units are available.
Feature → Business Impact → Application: Built-in HVAC control logic and an intuitive control panel streamline startup and commissioning, reducing engineering time and the risk of misconfiguration, which translates to faster project delivery and lower commissioning costs in HVAC installations. This cabinet-built ACH580 drive minimizes wiring complexity and panel integration effort, delivering a compact, integrated solution for air handling units, chillers, and pumps in commercial buildings or industrial facilities. Bluetooth-enabled remote commissioning (optional) supports off-site setup and fault diagnostics, cutting on-site visits and accelerating deployment in new builds or retrofit projects. IP21 standard protection with IP42/IP54 options ensures equipment reliability across office environments to harsh environments, safeguarding performance and uptime in critical HVAC applications. UL listing adds an assurance of safety and compliance, reinforcing risk mitigation for regulated facilities, while the 90 kW, 400 V, 169 A rating supports common HVAC load profiles. The cabinet-built form factor also eases integration into existing control cabinets, enabling smoother upgrades and lower installation costs over time.
Get a Quick Quote for a ABB 3AXD50000049020
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000049020?
Enquire Now
FAQs
Yes. The ACH580 is a cabinet-built solution designed for 400 V HVAC networks, with a compact form factor that fits into standard control panels. Its IP21 enclosure supports routine indoor installations, while IP42/IP54 options provide expanded protection for more demanding environments. The drive is compatible with typical HVAC loads like fans, pumps, and compressors, and integrates with existing motor control architectures to minimize rewiring and panel changes.
Key specs include a 90 kW (125 HP) power rating, 169 A current, and 400 V operating voltage. The unit ships with IP21 protection as standard and offers IP42/IP54 options. It is UL-listed for safety compliance. These specifications align with common HVAC loads such as air handlers, chillers, and pumps, enabling reliable performance across a range of commercial and industrial installations.
Absolutely. The ACH580 HVAC drive is engineered for HVAC applications, with built-in control features tailored for fans, pumps, and compressors. Its cabinet-built design simplifies integration into existing systems, while options like Bluetooth enable remote commissioning. This makes it well-suited for air handling units, cooling towers, and chiller systems requiring precise speed control and energy efficiency.
The drive is UL-listed and standardly delivered with IP21 protection, with IP42/IP54 options available for higher protection. These certifications and ratings help meet safety and environmental requirements in both commercial and industrial HVAC projects, supporting compliance during inspections and audits.
By consolidating drive and control into a single cabinet, startup time and wiring complexity are reduced, lowering installation costs. Remote commissioning via Bluetooth minimizes on-site visits, while energy-efficient operation reduces ongoing energy costs. The intuitive interface and HVAC-focused settings also simplify maintenance, translating to lower downtime and improved long-term reliability.
