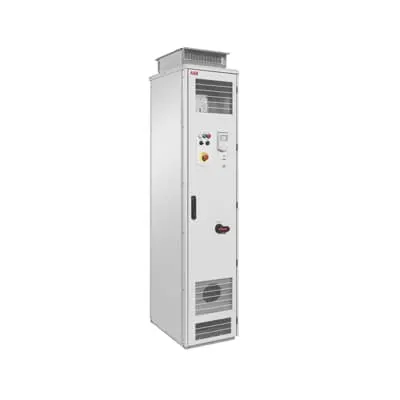

ABB 3AXD50000049034 ACH580 HVAC drive - IP21/IP54
Part Number: 3AXD50000049034
Quick Summary
ABB ACH580 HVAC drive powers and controls fans, pumps and compressors in commercial and industrial HVAC systems. Installation and commissioning are often slowed by complex wiring, disjointed control schemes, and inconsistent startup sequences. The unit is CE-marked and UL-listed, with standard IP21 protection and optional IP42/IP54 upgrades designed for harsher environments. Built-in HVAC control features, a purpose-built primary settings menu, and help assistants shorten setup time and reduce operator errors. Bluetooth-enabled remote commissioning adds flexibility, enabling plant-wide monitoring from the office or a service technician’s tablet. By combining integration with intuitive software and rugged protection, this drive delivers energy-efficient operation, easier procurement, and lower total cost of ownership for mechanical, electrical, and facilities teams.
Product Information
Extended Description
3AXD50000049034 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time, and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ready-made standalone cabinet-built ACH580-07 variant comes in IP21 as standard. Also, IP42 and IP54 units are available.
Built-in HVAC control algorithms provide precise speed control for fans, pumps and compressors. This reduces external controllers and wiring, lowering total installed cost and cabinet footprint. Ideal for air-handling units, rooftop units, and packaged chillers in commercial facilities. Cabinet-built LV AC drive design reduces field assembly and wiring complexity, enabling faster, lower-risk installations and easier compliance with internal standards. Suitable for central plant rooms and rooftop HVAC configurations where space and cabling are at a premium. Bluetooth connectivity supports remote commissioning and monitoring, minimizing on-site visits and accelerating repair times. Multi-site campuses and service contracts benefit from off-site setup and centralized diagnostics. IP21 standard protection with optional IP42/IP54 variants provides reliability in dusty, damp or wash-down environments, expanding the range of permissible facility locations. CE and UL certifications simplify procurement, regulatory adherence, and ongoing maintenance planning. Energy-efficient motor control and built-in diagnostics help reduce energy consumption and unplanned downtime, extending equipment life and lowering operating costs for large air handlers and chillers.
Get a Quick Quote for a ABB 3AXD50000049034
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000049034?
Enquire Now
FAQs
Yes. The ACH580 is designed for 400 V networks and provides 200 kW nominal power with high-current ratings (about 363 A), making it suitable for large fans, pumps and compressors in commercial HVAC installations. The cabinet-built format reduces on-site assembly time and simplifies wiring compared with separate drives.
The drive supports 400 V systems with a nominal power of 200 kW and current around 363 A. It is applicable for applications requiring CE marking and UL listing with IP21 protection as standard, while IP42/IP54 variants are available for harsher environments.
Yes. The ACH580 HVAC drive includes built-in HVAC control features optimized for fans, pumps and compressors, directly supporting air-handling units, rooftop units and chillers. Its IP ratings and Bluetooth remote commissioning further simplify integration in HVAC plant rooms.
The device carries CE marking and UL listing, with protection provided by standard IP21 and optional IP42/IP54 variants. These certifications help ensure regulatory compliance, safety and reliability in commercial and industrial facilities, including data centers and manufacturing floors.
The ACH580 reduces installation time, wiring complexity and commissioning labor, delivering lower initial costs and faster time-to-service. Its built-in diagnostics, remote monitoring via Bluetooth and long-term reliability support lower maintenance costs and downtime in HVAC networks.
