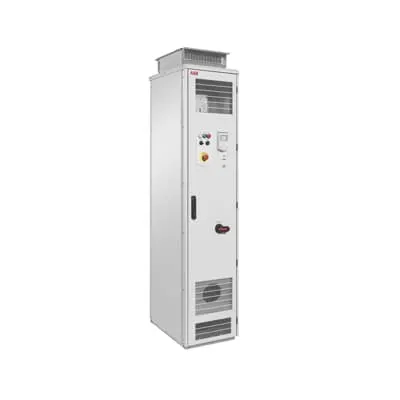

ABB ACH580-07-0430A-4 LV AC Drive for HVAC - IP54-rated
Part Number: 3AXD50000049035
Quick Summary
ABB ACH580-07-0430A-4 is a cabinet-built LV AC drive designed for HVAC applications, delivering precise control of fans, pumps and compressors. Engineers often struggle with lengthy commissioning and inconsistent performance across varying loads, but this drive reduces setup time with HVAC-specific menus and built-in diagnostics. It carries CE and UL certifications and offers IP21 as standard, with IP42 and IP54 variants for harsher environments. Built-in features support energy-efficient operation, ease of maintenance and seamless integration with building management systems, delivering measurable value for reliability and operating cost. The device also enables Bluetooth remote commissioning and monitoring, accelerating fault diagnosis and reducing on-site service visits.
Product Information
Extended Description
3AXD50000049035 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time, and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ready-made standalone cabinet-built ACH580-07 variant comes in IP21 as standard. Also, IP42 and IP54 units are available.
Feature → Business Impact → Application. HVAC-focused control: integrated logic for fans, pumps, and compressors translates to energy savings, smoother process fluctuations, and reduced wear, ideal for air handling units and chilled-water systems in commercial buildings. The result is lower operating costs and higher equipment availability across cooling and ventilation circuits. Cabinet-built with standard IP21 protection: factory-sealed enclosures simplify installation in electrical rooms and service corridors, reducing field assembly time and minimizing contamination risk, which is especially valuable in retrofit projects and retrofits in existing facilities. Applications include centralized AHUs and rooftop unit configurations where quick deployment matters. HVAC-specific primary settings menu and help assistants: streamlined startup, reduced commissioning errors, and faster performance optimization translate to shorter project timelines and lower commissioning labor costs, a boon for system integrators and engineers overseeing multi-site deployments. Best suited for new builds and expansions of HVAC plants.Bluetooth capability for commissioning and monitoring: remote access supports off-site commissioning, faster troubleshooting, and proactive maintenance planning, empowering technicians to verify performance without on-site visits, which improves uptime and serviceability in large campuses. High-power rating and UL-listed performance: Pn 250 kW, 430 A at 400 V (UL Pld 350 Hp, 414 A, 480 V) ensures compatibility with medium-to-large HVAC loads, reducing the need for oversizing and enabling efficient motor control in fans, pumps and compressor packs. These specs align with industrial standards and local electrical codes, simplifying procurement and compliance during project execution.
Get a Quick Quote for a ABB 3AXD50000049035
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000049035?
Enquire Now
FAQs
The ACH580 is a cabinet-built LV drive with standard IP21 protection and optional IP42 or IP54 variants. Plan for proper enclosure clearance, cooling, and access for maintenance. Its cabinet-built design simplifies wall or rack mounting in electrical rooms, reducing field wiring errors and speeding up installation in AHU and chiller installations.
The drive is rated for Pn 250 kW with 430 A at 400 V, and UL listing corresponds to Pld 350 Hp, 414 A at 480 V. These ratings align with medium-to-large HVAC loads, enabling efficient motor control for fans, pumps, and compressors without oversizing.
Best-fit applications include fans, pumps and compressors in air handling units, rooftop units, and chillers. Its HVAC-specific menus speed up setup, while built-in control logic ensures stable, energy-efficient operation under varying load conditions common in commercial and industrial buildings.
The drive carries CE and UL certifications for compliance and safety. It also provides standard IP21 protection with options for IP42 or IP54, offering increased ingress protection for more demanding environments and stricter regulatory requirements.
By delivering energy-efficient operation, faster commissioning, and easier maintenance, the drive lowers utility bills and reduces labor costs during installation and service. Optional Bluetooth enables remote commissioning and monitoring, cutting on-site visits and accelerating fault diagnosis, further lowering TCO over the system lifecycle.
